BS-U830E

Intel® Atom® Processor & Intel® Celeron® Processors Fanless Embedded PC

•Intel® Celeron® J6412 / Atom® x6212RE, x6425RE processor on board
•Optional support for low temperature environments
•Powered by highly cost performance SoC
•4K resolution DP & HDMI® support
•Support DC In 12V, 24V power input

Tech Spec
Product Info
Download

CPU Support		Intel^® Celeron^® J6412: 10w, 4C, 2.0GHz Intel^® Atom^® x6212RE: 6w, 2C, 1.2GHz Intel®Atom®x6425RE: 12w, 4C, 1.9GHz
Memory Support		1 x SO-DIMM socket, supporting 3200MHz DDR4 memory up to 32GB (non-ECC)
API/SW/FW		Watchdog / HW monitor
Storage Support		1 x NVMe PCIe x2 (support 2280 size only)
Power Input		DC In 12V / 24V
Power Adapter		72W adapter w/ lockable 3 pin terminal block
Operating System		Windows 10 IoT 2021 Enterprise LTSC / Ubuntu 20.04 / Windows 11 IoT 2024 Enterprise LTSC (need to test)
Expansion Slots		1 x full-sized mPCIe slot (with PCIe and USB signal)
System Weight		1.9 kg
Dimensions (W x H x D)		217.5 x 50 x 140.6 mm (with rubber foot)
Certifications		FCC / CE
I/O Ports (Front side)
USB		2 x USB 3.0 3 x USB 2.0
Display		1 x DP, up to 4096 x 2304 @60Hz 1 x HDMI^®, up to 4096 x 2160 @60Hz
LAN		2 x 2.5GbE LAN, supports Wake-On-LAN & PXE
Audio		1 x Line Out
Serial Port		COM 1: RS232/422/485, support 5V/12V selectable by jumper
SIM		1 x Micro-SIM slot
Power On/Off		1 x Power Button with Power LED 1 x 2 pin Remote Switch
Power Input		3 pin DC In terminal block (lockable)
I/O Ports (Rear side)
Serial Port		COM 2: RS232/422/485
Antenna Hole		4 x Antenna holes for reservation
Environment
Operating Temp. (Ambient with airflow)		-40°C~60°C (-40°F~140°F) for Atom SKU 0°C~50°C (32°F~122°F) for other SKUs
Storage Temp.		-40°C~85°C (-40°F~185°F)
Humidity		20%~90%

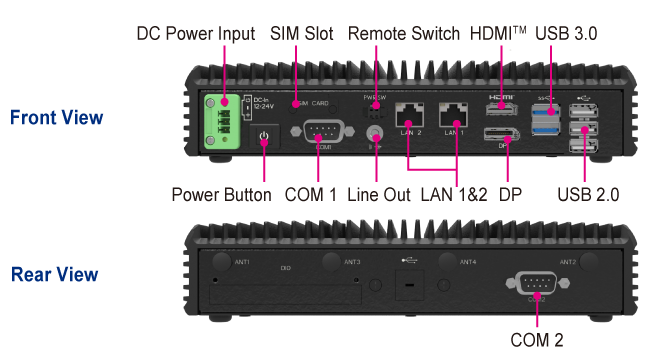

BS-U830E IO

BS-U830E Dimensions
