BS-U830
Fanless Embedded PC Intel® Celeron® / Atom® SoC Processor
•Intel® Celeron® J6412 / Atom® x6212RE, x6425RE processor on board
•Optional support for low temperature environments
•Powered by highly cost performance SoC
•Storage support both 2.5" & M.2 type
•4K resolution DP & HDMI® support
•Digital I/O 6in / 6out support
•Support DC In 12V, 24V power input
•Optional support for low temperature environments
•Powered by highly cost performance SoC
•Storage support both 2.5" & M.2 type
•4K resolution DP & HDMI® support
•Digital I/O 6in / 6out support
•Support DC In 12V, 24V power input
| System | ||
| CPU Support |
Intel® Celeron® J6412: 10w, 4C, 2.0GHz Intel® Atom® x6212RE: 6w, 2C, 1.2GHz Intel® Atom® x6425RE: 12w, 4C, 1.9GHz |
|
| Memory Support |
1 x SO-DIMM socket, supporting 3200MHz DDR4 memory up to 32GB (non-ECC)
|
|
| API/SW/FW |
Watchdog / HW monitor
|
|
| Storage Support |
1 x 2.5" 7mm SATAIII HDD or SSD drive space 1 x NVMe PCIe x2 (support 2280 size only) |
|
| Power Input | DC In 12V / 24V | |
| Power Adapter | 72W or 120W adapter w/ lockable 3 pin terminal block | |
| Expansion Slots |
1 x full-sized mPCIe slot (with PCIe and USB signal) 1 x M.2 slot E-Key for wireless module
|
|
| Operating System | Windows 10 64bit / Ubuntu 20.04 / Windows 11 | |
| System Weight |
2 kg |
|
| Dimensions (W x H x D) |
217.5 x 50 x 140.6 mm (with rubber foot) |
|
| Certifications |
FCC / CE |
|
|

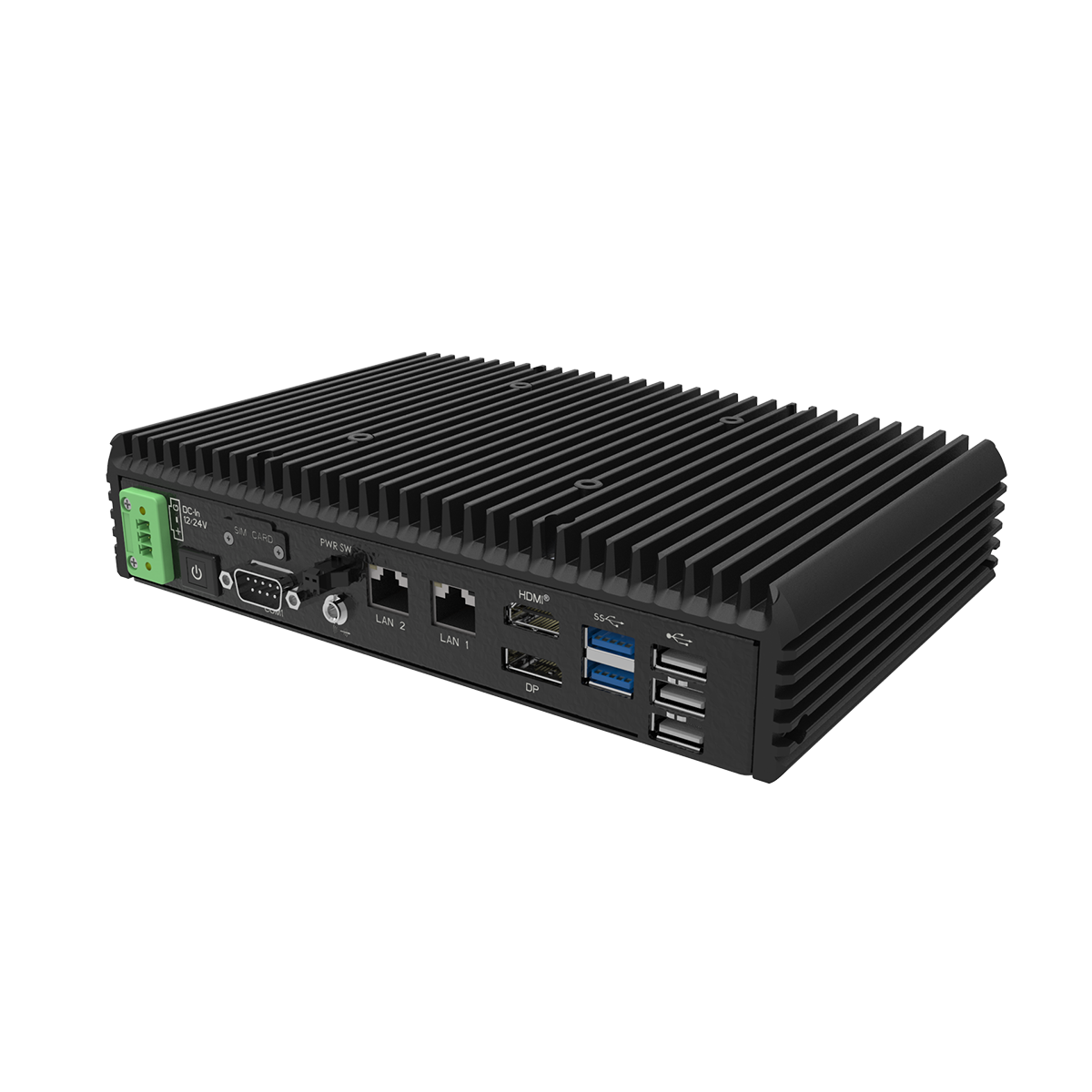

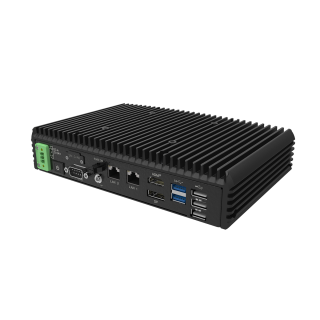

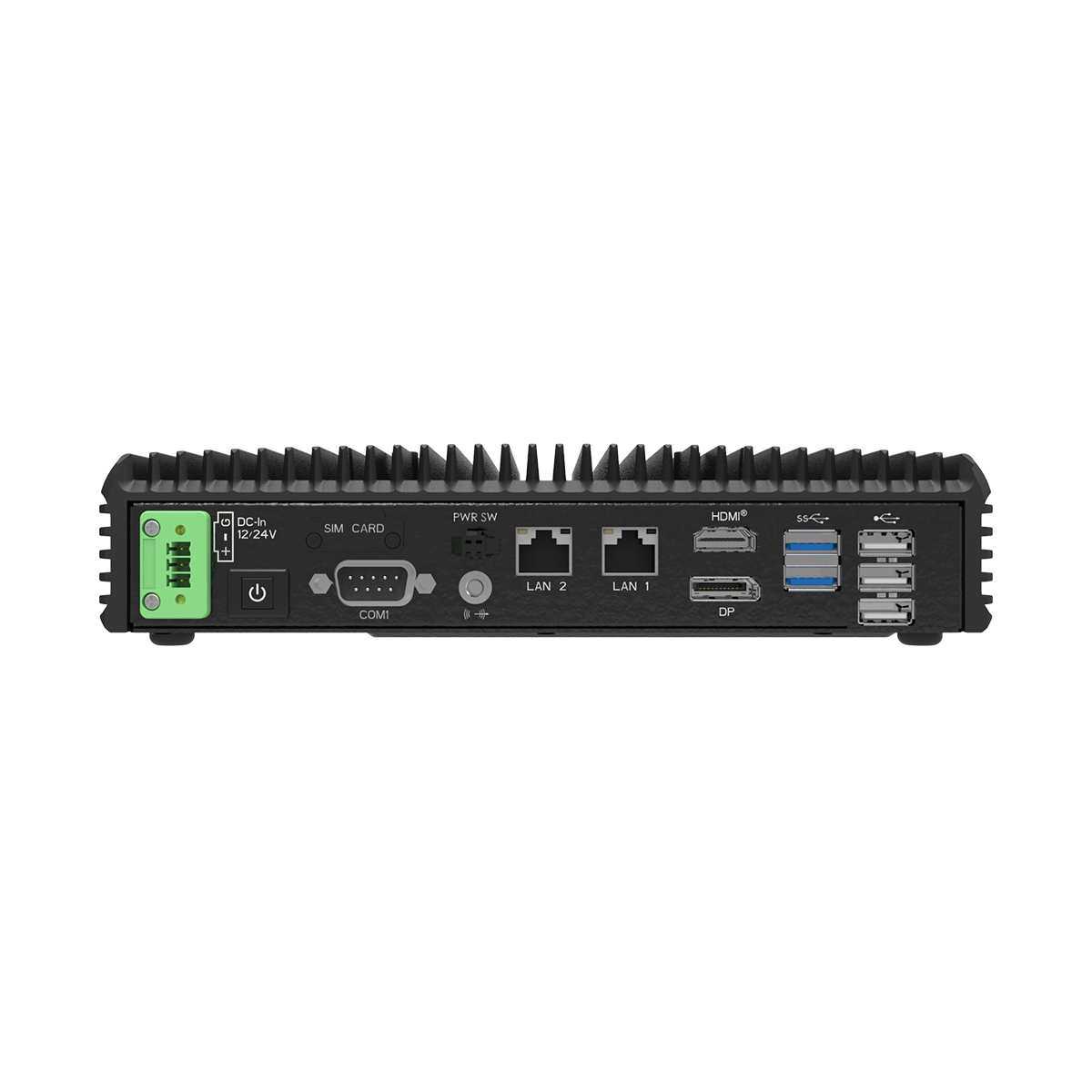

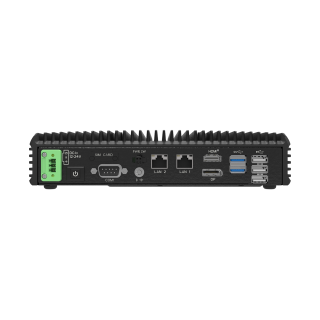

I/O Ports (Front side) |
||
| USB |
2 x USB 3.0 3 x USB 2.0 |
|
| Display |
1 x DP, up to 4096 x 2304 @60Hz 1 x HDMI®, up to 4096 x 2160 @60Hz |
|
| LAN |
2 x 2.5GbE LAN, supports Wake-On-LAN & PXE |
|
| Audio |
1 x Line Out |
|
| Serial Port |
COM 1: RS232/422/485m support 5V/12V selectable by jumper
|
|
| SIM |
1 x Micro-SIM slot |
|
| Power On/Off |
1 x Power Button with Power LED 1 x 2 pin Remote Switch |
|
| Power Input |
3 pin DC In terminal block (lockable)
|
|
|

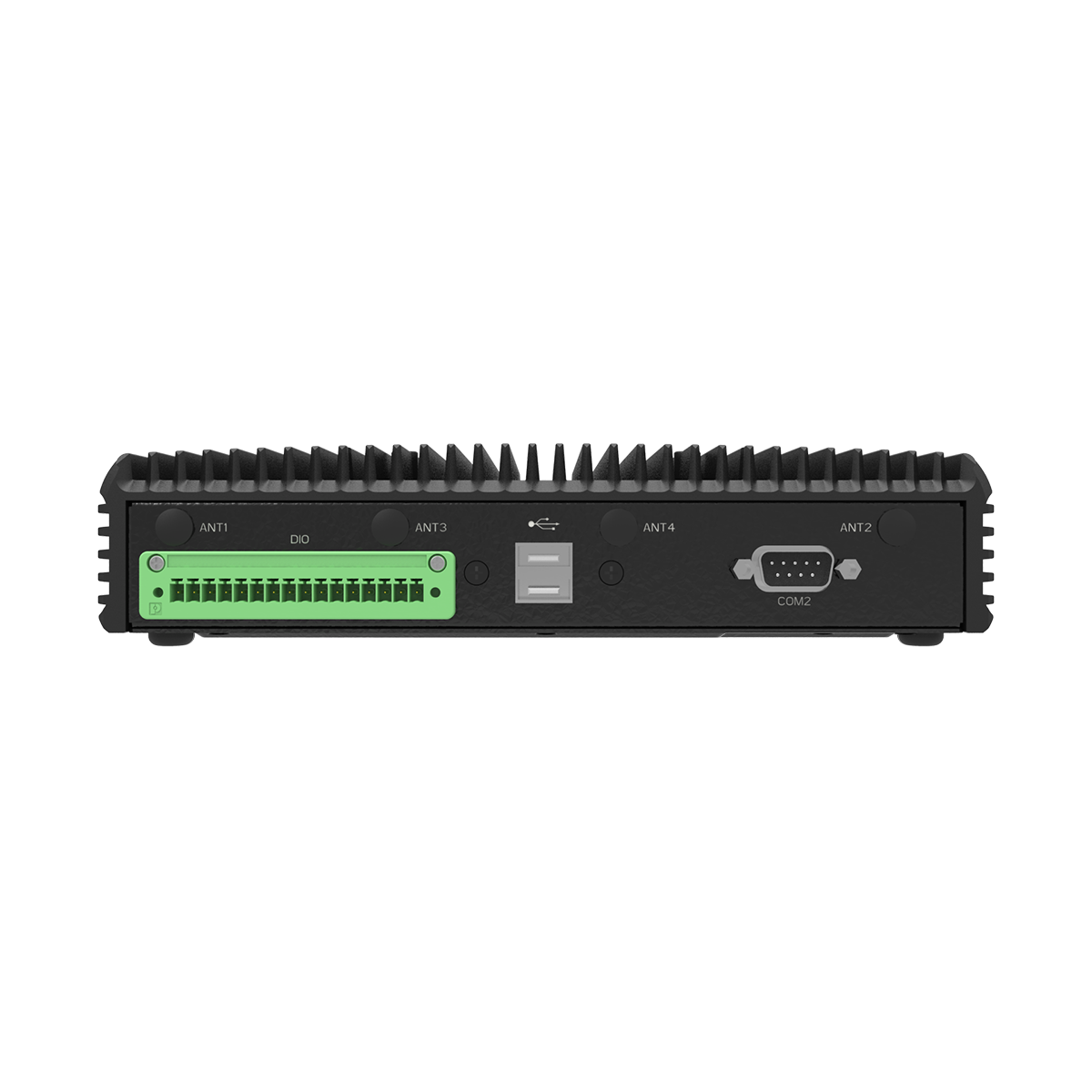

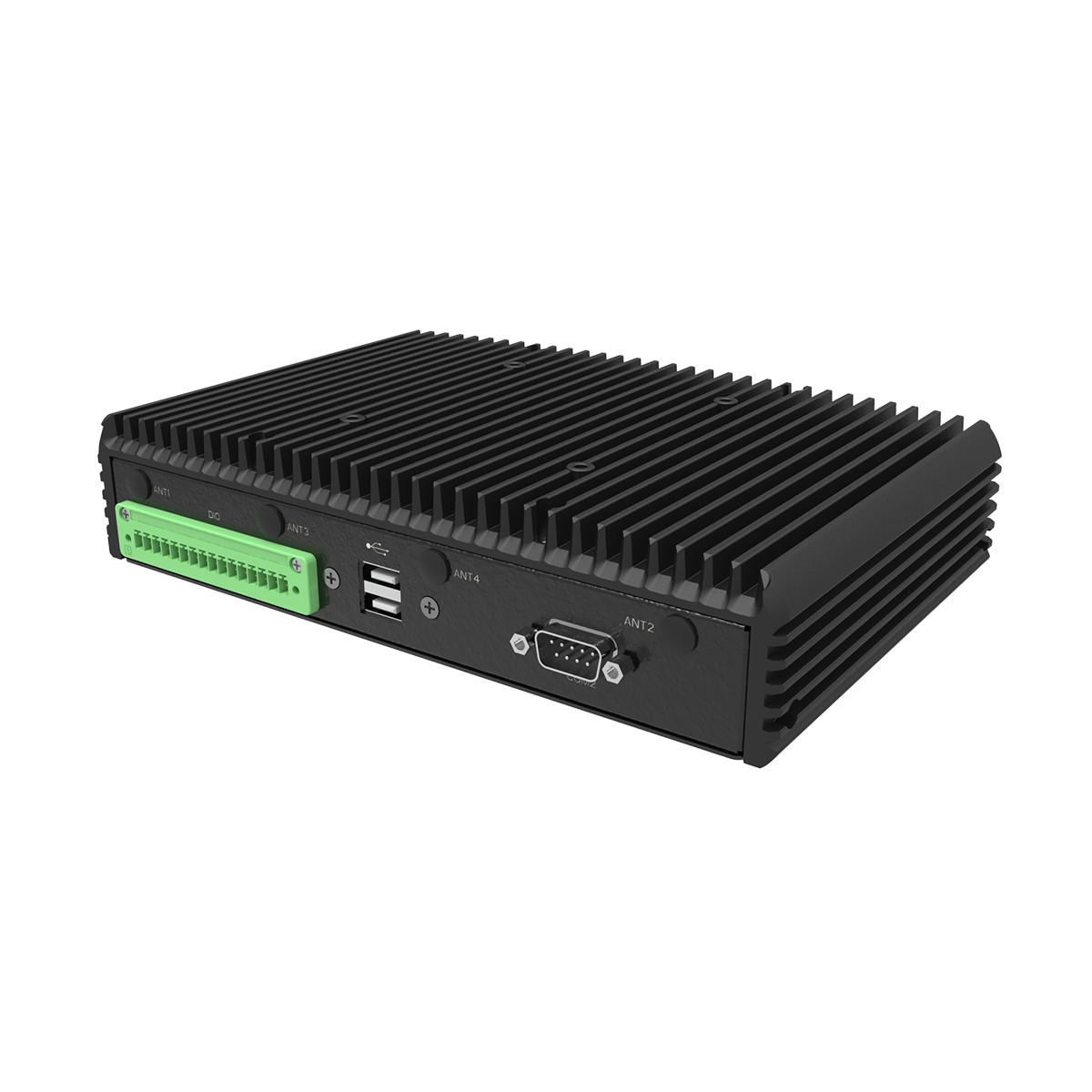

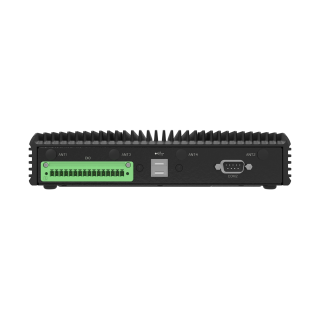

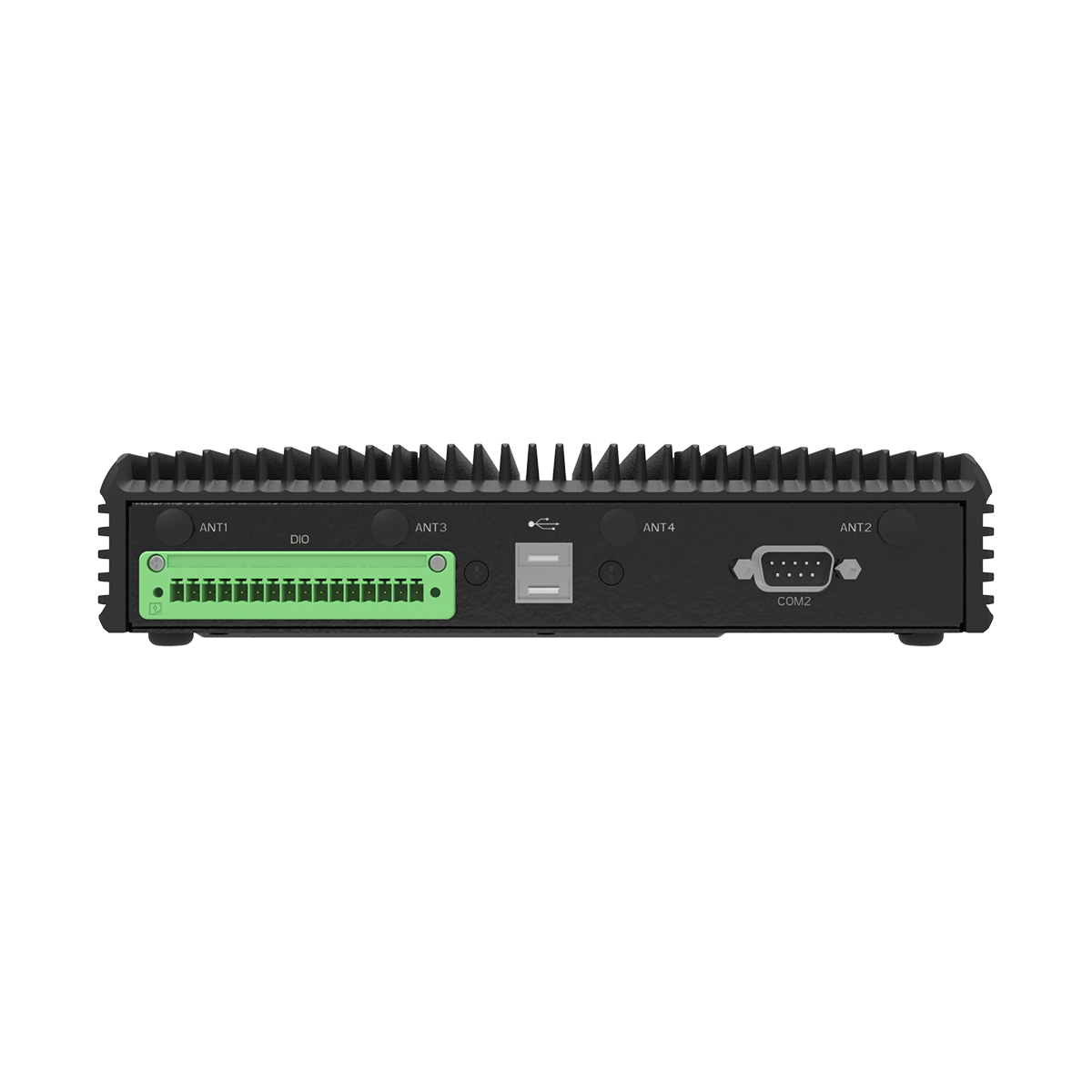

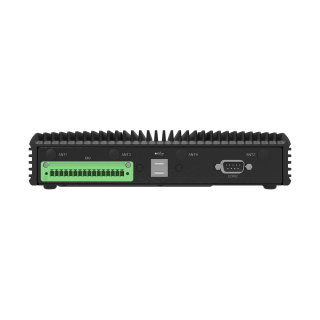

I/O Ports (Rear side)
|
||
| PoE |
2 x PoE LAN port, each 30W (PoE SKU only)
|
|
| Serial Port |
COM 2: RS232/422/485m support 5V/12V selectable by jumper (Normal SKU only)
|
|
| USB |
2 x USB 2.0
|
|
| DIO |
6 in / 6 out (including 5V x2 & GND x2)
|
|
| Antenna Hole |
Normal SKU: 4 x Antenna holes for reservation
PoE SKU: 2 x Antenna holes for reservation
|
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
SSD: -40°C~60°C (-40°F~140°F) for Atom SKU HDD: -40°C~40°C (-40°F~104°F) for Atom SKU SSD: 0°C~50°C (32°F~122°F) for other SKUs HDD: 0°C~40°C (32°F~104°F) for other SKUs |
|
| Storage Temp. | -40°C~85°C (-40°F~185°F) | |
| Humidity | 20%~90% | |

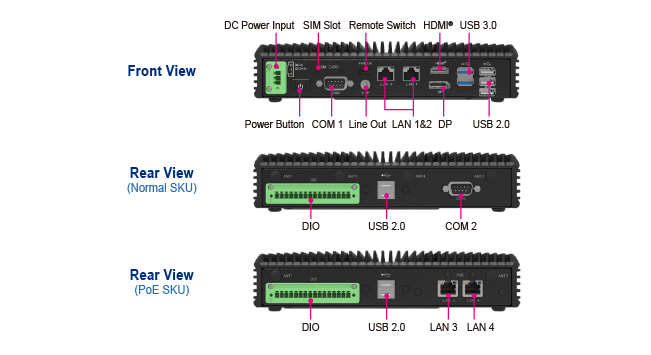

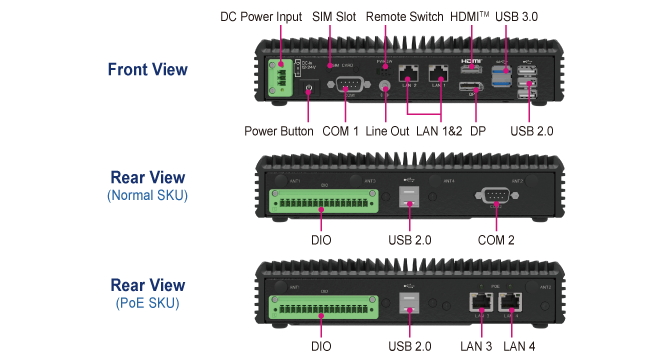

BS-U830 IO
BS-U830 Dimensions
