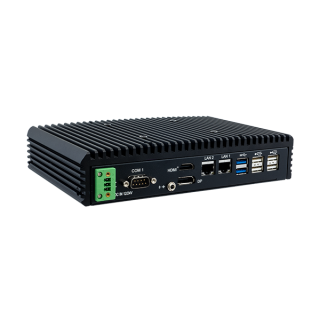

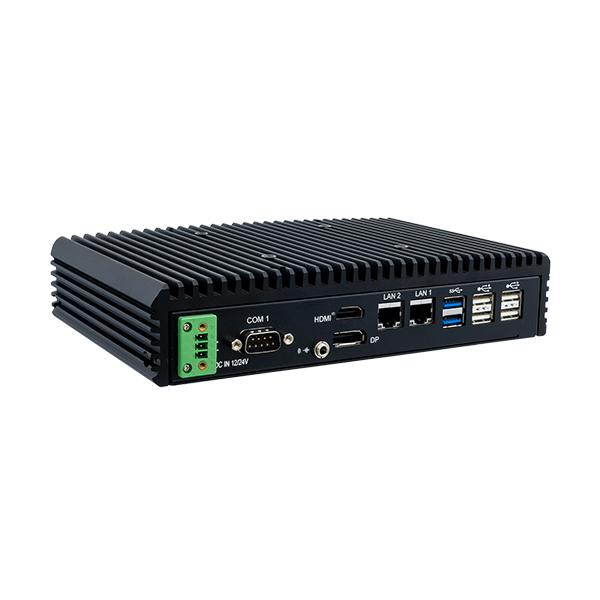

BS-E099
High Performance Intel® Kabylake-U Fanless Embedded PC
•Intel® 7th Gen. Core™ i5 / i3 CPU fanless
•Operating temperature support max -10°C ~60°C
•Max up to 8 ports USB or 4 ports COM
•4K resolution DP & HDMI® support
•Digital I/O 8 in / 8 out support
•DC power in support 12V / 24V
•Operating temperature support max -10°C ~60°C
•Max up to 8 ports USB or 4 ports COM
•4K resolution DP & HDMI® support
•Digital I/O 8 in / 8 out support
•DC power in support 12V / 24V
System | ||
CPU Support |
Intel® Core i5-7300U, 2.6GHz Intel® Core i3-7100U, 2.4GHz |
|
Memory Support |
1 x DDR4 SO-DIMM sockets (up to 16GB) |
|
Storage Support |
1 x 2.5" SATAIII 1 x full-sized mPCIe slot |
|
Power Input |
60W/DC12V power adaptor (VAC100~240)
|
|
Expansion Slots |
1 x full-sized mSATA slot
|
|
Operating System |
Windows 10 64bit / Ubuntu 16.04 64bit |
|
System Weight |
2.0 kg |
|
Dimensions (W x H x D) |
217.5 x 46 x 140.6 mm (w/o rubber foot) |
|
Certifications |
FCC / CE |
|
I/O Ports (Front1 side) |
||
Serial Ports |
1 x RJ45/COM 2, RS-232(default)/422/485 & 12V/5V voltage selectable via BIOS 2 x RS-232/optional/COM 3~4, RS-232/optional |
|
DIO Port |
1 x DIO (8 in / 8 out), signal by 5V |
|
Power On/Off |
1 x Power button |
|
I/O Ports (Front2 side) |
||
USB |
2 x USB 2.0, only support Core-i5 / i3 SKU |
|
Serial Ports |
1 x D-sub/COM 2, RS-232(default)/422/485 selectable via BIOS 2 x D-sub/COM 3~4, RS-232/optional |
|
Power On/Off |
1 x Power button |
|

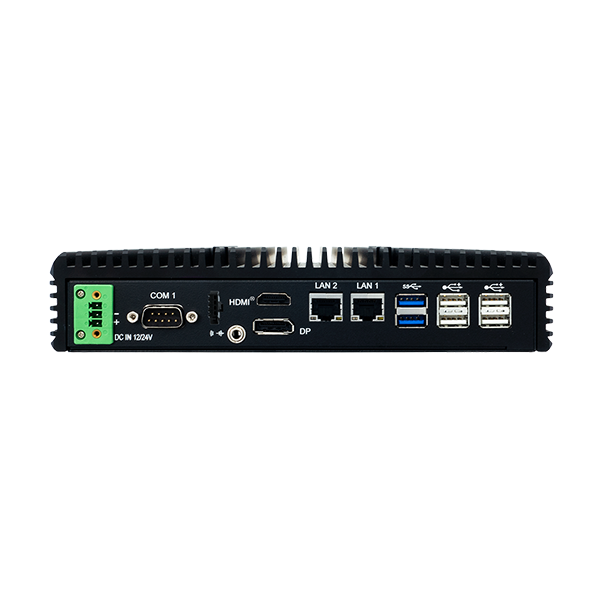

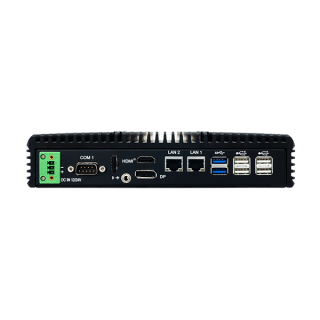

I/O Ports (Rear side) |
||
Display |
1 x DP port/4K resolution 1 x HDMI® port/4K resolution |
|
USB |
6 x Ports (2 x USB 3.1 Gen1; 4 x USB 2.0) |
|
Serial Ports |
1 x D-sub/COM 1, RS-232 |
|
LAN |
2 x RJ45 GbE LANs
|
|
Power Input |
1 x 3 pin DC power connector support 12/24V
|
|
Audio |
1 x 3.5" line out phone jack
|
|
I²C |
1 x 4 pin (5V/GND/Date/Clock)
|
|
Environment |
||
Operating Temp.
(Ambient with airflow)
|
For Core i5-7300U / For Core i3-7100U -10°C~60°C (14°F~140°F)
|
|
Storage Temp. | -40°C~80°C (-40°F~176°F) | |
Humidity |
20%~95% |

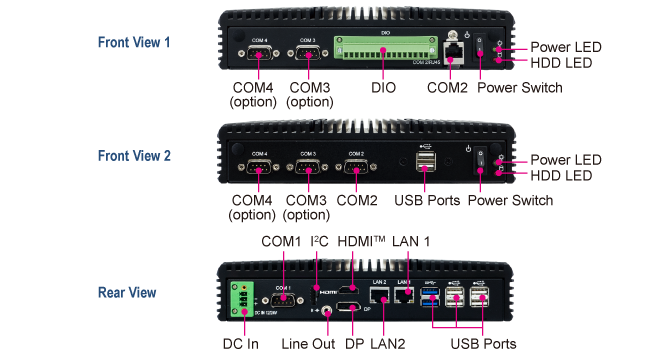

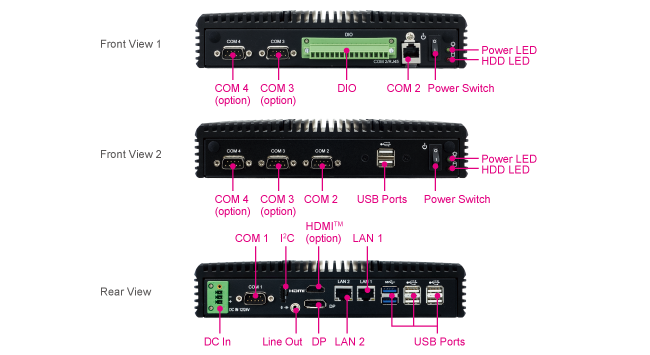

![](https://www.protechgroup.tw/upload/catalog_b/bs-e099_io-650-355__24G02EzfrB.png)
