BS-E097
•Powered by highly cost performance SoC
•Storage support both 2.5" & mSATA type
•Support DC In 12V, 19V, 24V wide voltage power input
| System | ||
| CPU Support |
Intel® Celeron® J3455: 10w, 4C, 1.5GHz Intel® Celeron® N3350: 6w, 2C, 1.1GHz Intel® Atom® x5-E3940: 10w, 4C, 1.6GHz |
|
| Memory Support |
1 x SO-DIMM socket, supporting 1600/1866MHZ DDR3L memory up to 8G (non-ECC) |
|
| API/SW/FW |
Watchdog / HW monitor / fTPM |
|
| Storage Support |
2.5" 7mm SATAIII HDD or SSD drive space |
|
| Power Input |
Wide-ranged voltage DC In 12V and19, 24V
|
|
| Power Adapter |
60W power adapter with lockable 3-pin terminal block |
|
| Operating System |
Windows 10 64bit / Ubuntu17.04 (kernel:4.4) |
|
| Expansion Slots |
1 x full-sized mSATA slot (with USB signal) 1 x full-sized mPCIe slot (with USB signal) |
|
| System Weight |
2 kg |
|
| Dimensions (W x H x D) |
217.5 x 46.6 x 140.6 mm (without Rubber Foot) |
|
| Certifications |
FCC / CE |
|
|

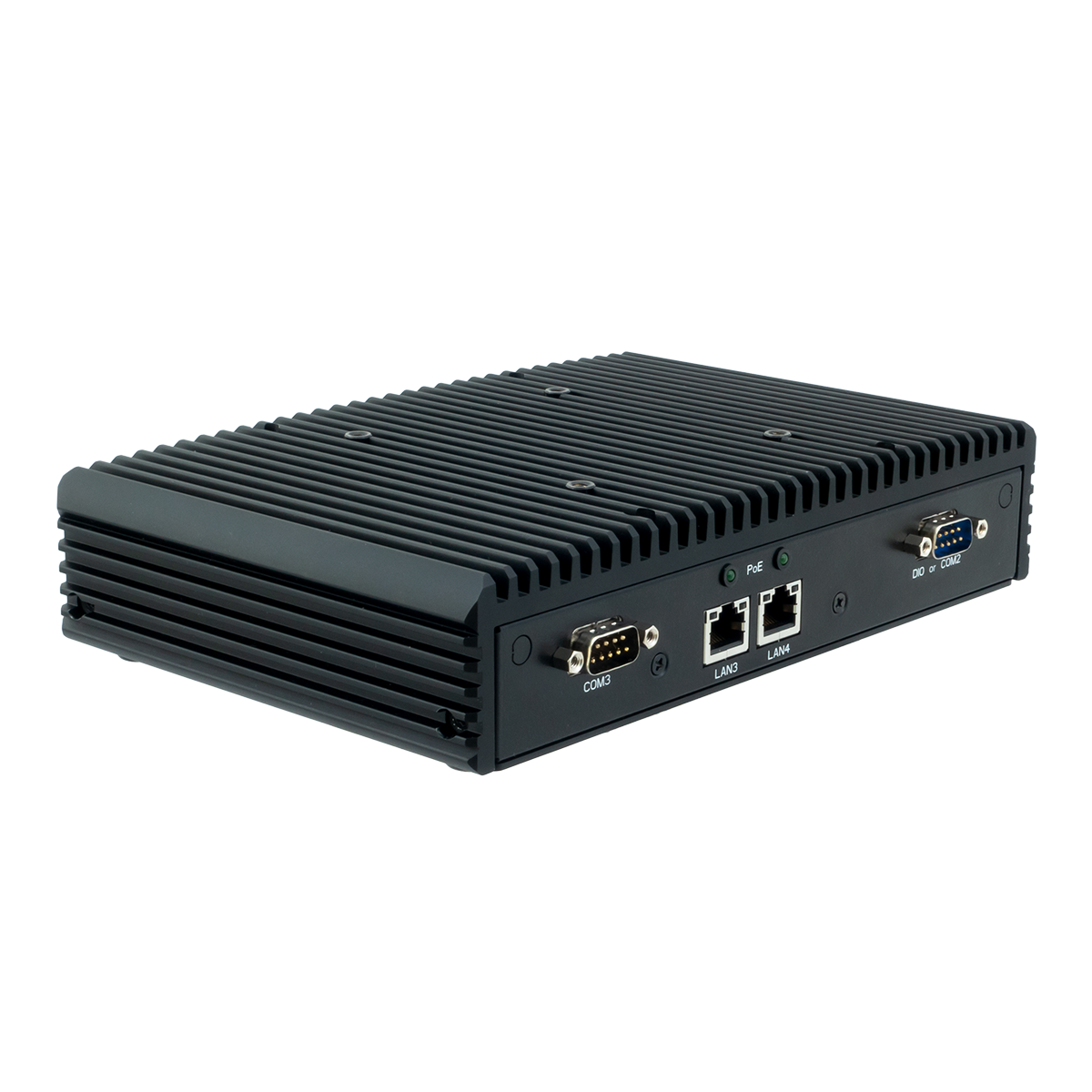

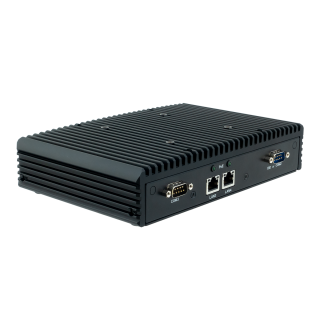

I/O Ports (Front side) |
||
| USB |
2 x USB 2.0 |
|
| Serial Ports |
COM 1: RS232 COM 2: RS232/422/485 (selectable under BIOS) COM 3 & COM 4: RS-232 with RI/5V/12V selectable by jumper |
|
| LAN (optional) |
2 x LANs, supports - Optional, must remove 2 x USB & COM 1 & COM 4 - Support PSE (option) |
|
| Antenna Hole |
4 x antenna holes (supports up to 4 antenna) |
|
|

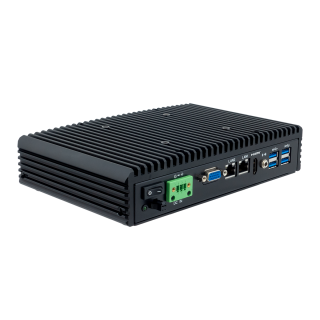

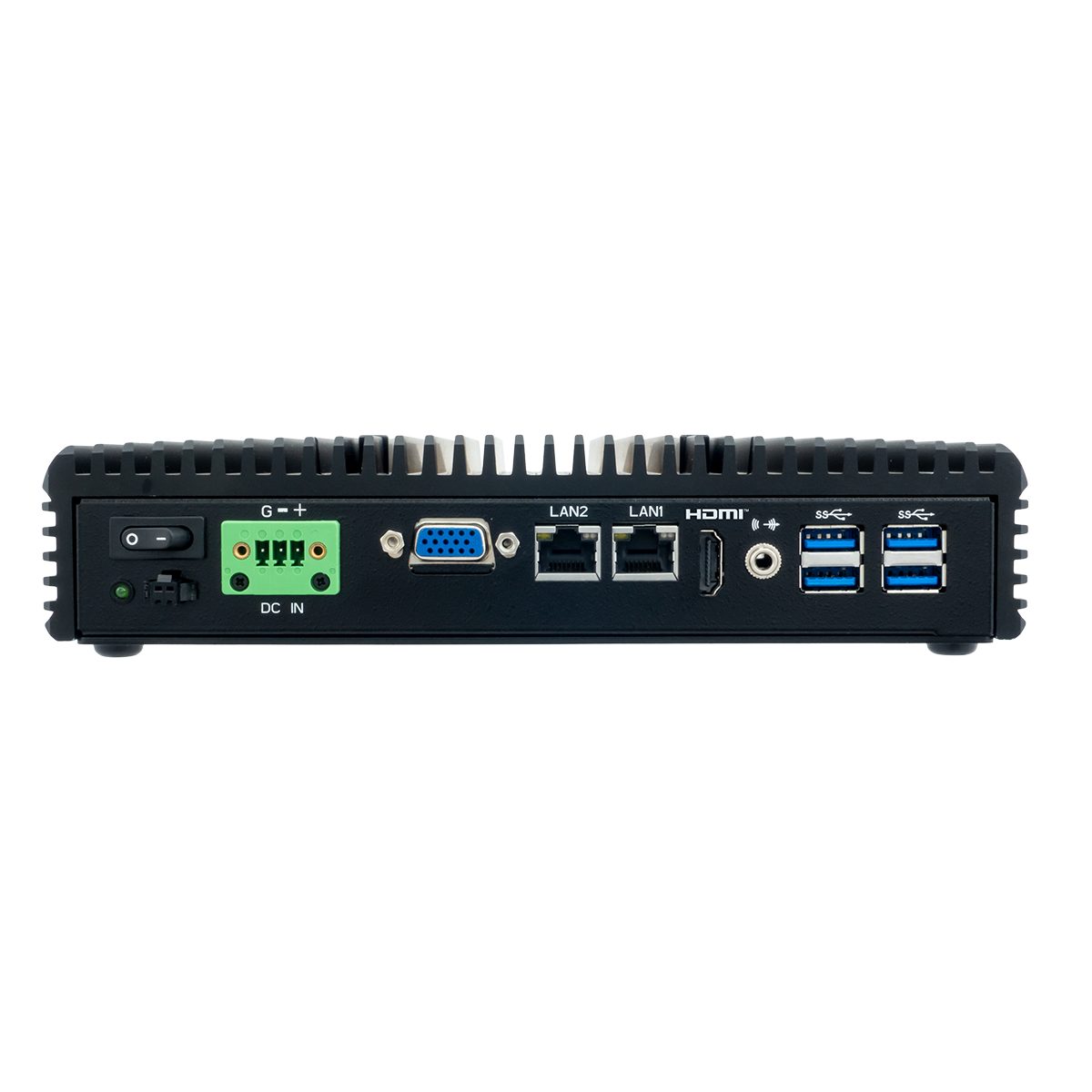

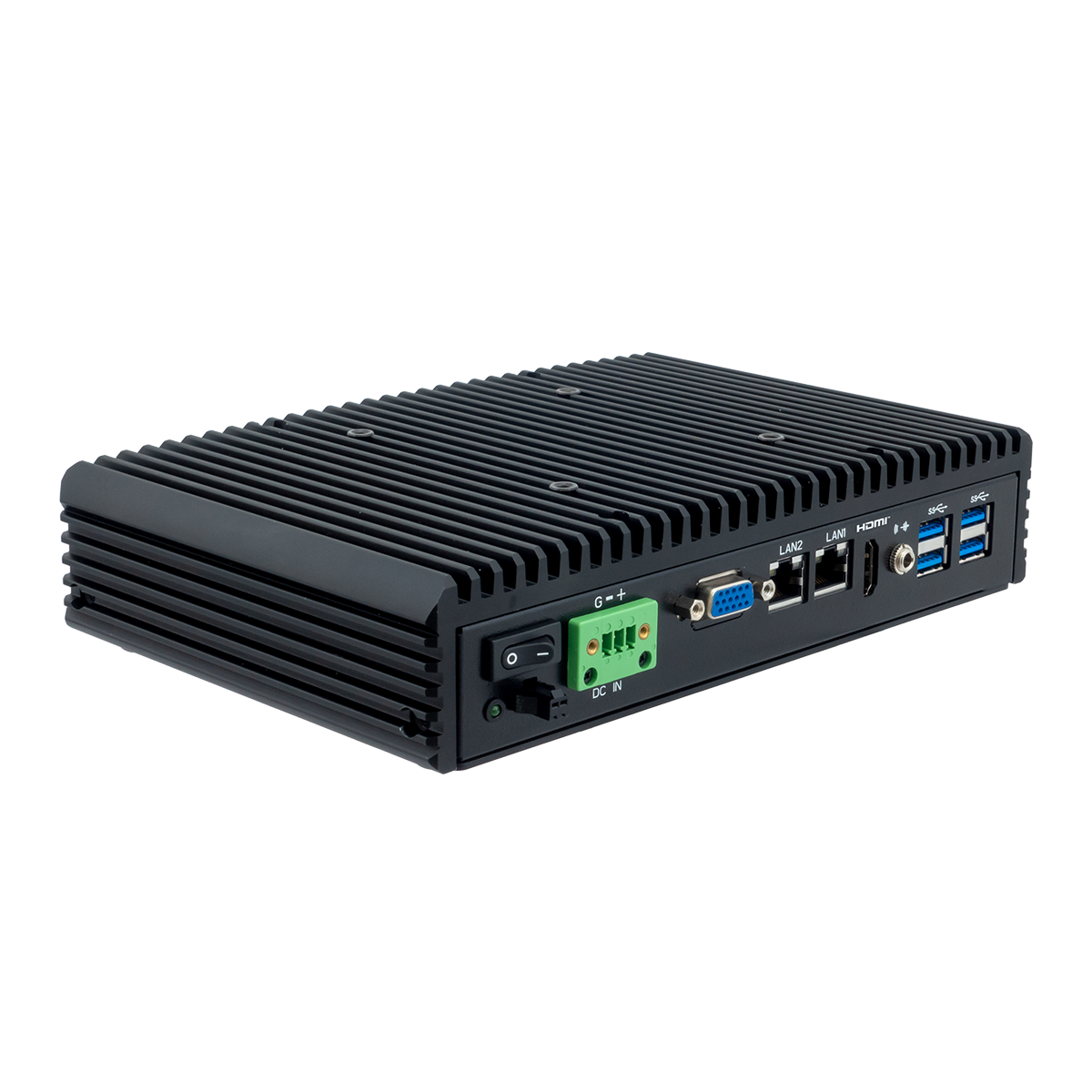

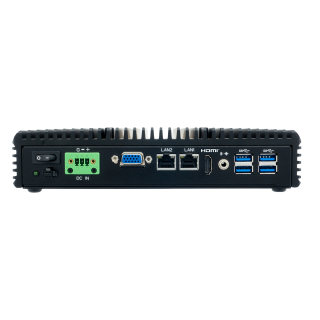

I/O Ports (Rear side) |
||
| Display |
1 x VGA, 1 x HDMI®1.4a |
|
| USB |
4 x USB 3.0 |
|
| LAN |
2 x LANs (supports Wake-On-LAN) LAN 1: Intel® I210IT LAN 2: Intel® I210IT |
|
| Power Input |
3 pin DC In terminal block (lockable), supporting 12V and 19V, 24V
|
|
| Power On/Off |
1 x Power Button, 1 x Extended Power Connector
|
|
| LED |
1 x Power LED
|
|
| Audio |
1 x Line Out
|
|
|
Environment |
||
| Operating Temp.
(Ambient with airflow)
|
Celeron J3455: 0°C~40°C (32°F~104°F) Celeron N3350: 0°C~40°C (32°F~104°F) Atom E3940: -40°C~60°C (-40°F~140°F) |
|
| Storage Temp. | -40°C~85°C (-40°F~185°F) | |
| Humidity |
20%~90% |
|

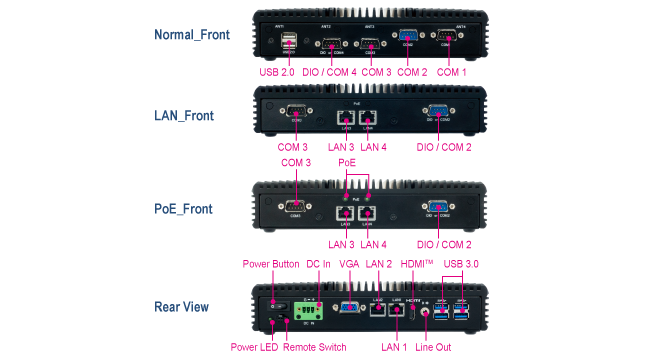

BS-E097 IO
| BS-E097 |
Fanless Embedded PC Intel® Celeron® J3455 / N3350 / Atom® x5-E3940 Processor |
