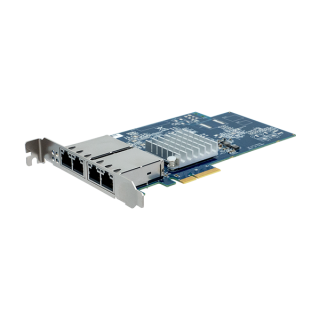

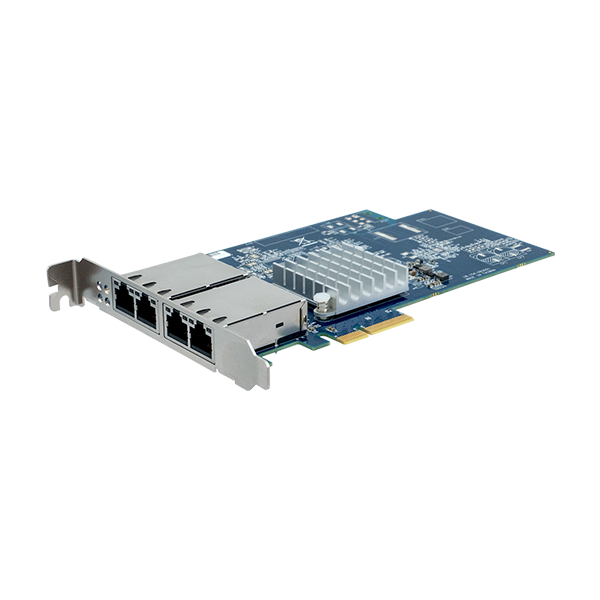

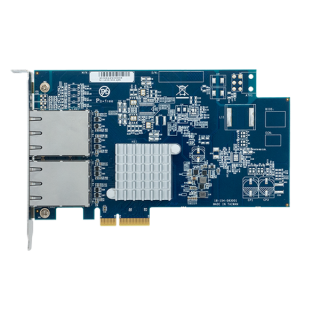

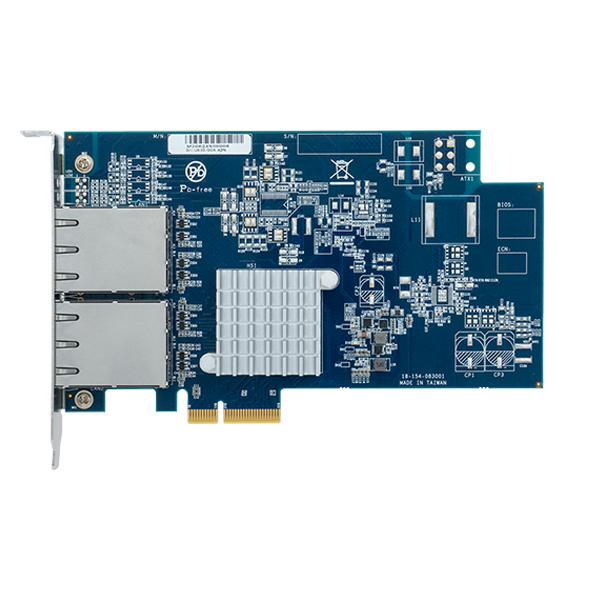

BR-U830-D4
4-Port Half-Size GbE PoE Card with 802.3af
•Intel server-grade GbE Mac Controller
•PCI Express x4 compliant
•PCI Express x4 compliant
|
Introduction |
||
|
The "BR-U830-D4" is a half-sized form factor 4-port GIGA LAN Card via Intel I350 Ethernet controller. It supports 1000 Mb/s bandwidth over a CAT-5(6)(7) cable of up to 30 meters. |
||
|
Ethernet Communications |
||
| Compatibility |
IEEE802.3af
|
|
| Speed | 10/100/1000 Mbps | |
| No. of Ports |
4 Gigabit Ethernet Media Access Control (MAC) within physical layer (PHY) ports |
|
| Port Connector |
8-pin RJ45
|
|
| Bus Interface |
PCI Express® x4 compliant
|
|
| Protection | ||
| ESD | 8KV (air), 4KV (contact) | |
| EFT | 2 KV | |
| Surge Protection |
1 KV |
|
| Environment | ||
| Operating Temperature | 0°C~50°C | |
| Storage Temperature | -20°C~80°C | |
| Operating Humidity | 5% RH~95% RH | |
| Mechanics | ||
| Dimensions (W x D) |
176 x 107 mm
|
|
| Ordering Information | ||
| BR-U830-G1A-42N |
4-port GIGA LAN
|
|

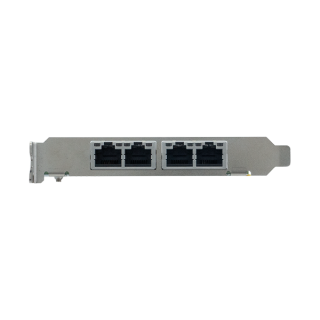

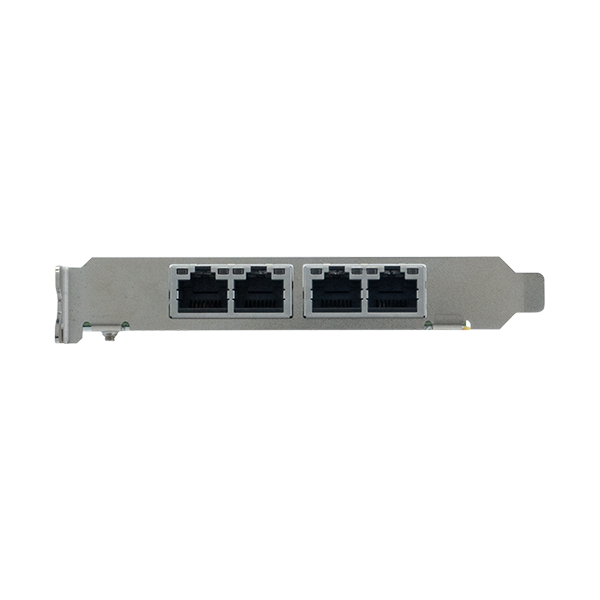

BR-U830-D4 IO
| BR-U830-D4 |
4-Port Half-Size GbE PoE Card with 802.3af |
| File type | File Download |
| EDM | BR-U830-D4_EDM |
| Pictures | BR-U830-D4_Pictures |
