BM-D226
Mini-ITX M/B for Intel® 12th & 13th & 14th Gen. Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® CPU
•Intel® 12th & 13th & 14th Gen. Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® CPU
•4 x COM, 2 x LAN, 8 x USB
•1 x HDMI®, 1 x DP, 1 x DVI-D
•1 x M.2 B-Key (Q670E only)
•1 x M.2 E-Key
•1 x SIM slot for M.2 B-Key
•4 x COM, 2 x LAN, 8 x USB
•1 x HDMI®, 1 x DP, 1 x DVI-D
•1 x M.2 B-Key (Q670E only)
•1 x M.2 E-Key
•1 x SIM slot for M.2 B-Key
| System | ||
| CPU Support | LGA1700 for Intel® 12th & 13th & 14th Gen. Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® CPU | |
| CPU List |
Target TDP 65W i9-13900TE/E, i9-12900TE/E i7-13700TE/E, i7-12700TE/E i5-13500TE, i5-13400E, i5-12500TE/E i3-13100TE/E, i3-12100TE/E Pentium: G7400TE/E Celeron: G6900TE/E |
|
| Chipset | Intel® H610E/Q670E | |
| Memory Support | 2 x DDR4 SO-DIMM, 3200MT/s up to 64GB (non-ECC) | |
| BIOS | AMI UEFI BIOS | |
| Watchdog | 1~255 seconds watchdog timer selectable | |
| Power Supply | Support DC12/24V input with 3-pin terminal block | |
| Dimensions | 170 x 170 mm (6.69" x 6.69") | |
| Certifications | CE / FCC | |
| O.S. Support |
Windows 11 GAC, Window 10 IoT 2021 LTSC Linux Ubuntu 20.04 |
|
|
I/O Ports |
||
| SATA Interface |
2 x SATAIII with SATA power connector 2-pin |
|
| Expansion Bus |
1 x PCIe(x16), 1 x SIM slot for M.2 B-Key (Top side) (Q670E only)
|
|
| M.2 Slot |
1 x PCIe M.2 B-Key PCIe (x1) / SATA (2242/3042/3052) / USB 2.0 (Q670E only) 1 x PCIe M.2 E-Key PCIe (x1) / USB (2230)
|
|
| LPC |
1 x LPC (2x5 pin header), for debug only. |
|
| Serial Ports |
4 x COM ports COM 1&2: RS232 / 422 / 485, support +5V/+12V jumper selectable (wafer) COM 3&4: RS232 (wafer) |
|
| FAN |
1 x System Fan (4 pin wafer, with smart fan function) 1 x CPU Fan (4 pin wafer, with smart fan function)
|
|
| LAN |
Dual LAN (2 x RJ45 on the edge) Intel® LAN I226 (2.5 GbE), supports Wake-On-LAN & PXE
|
|
| Audio |
1 x MIC-in, 1 x Line-in, 1x Line-out (on the edge) 1 x MIC-in, 1 x Line-in, 1x Line-out (pin header, on the main-board)
|
|
| Digital I/O |
4 in / 4 out (wafer) |
|
| USB |
8 ports 4 x external USB 3.0 (on the edge) 2 x external USB 2.0 (on the edge) 2 x internal USB 2.0 (wafer) |
|
| Graphics | ||
| Flexible Display | 1 x DP, 1 x HDMI®, 1 x DVI-D, support triple independent display | |
| DisplayPort | 1 x DP (on the edge) up to 4096 x 2304 @60Hz (default) | |
| HDMI® | 1 x HDMI® (on the edge) up to 4096 x 2160 @60Hz (default) | |
| DVI-D | 1 x DVI-D (on the edge) up to 1920 x 1200 @60Hz | |
| Environment | ||
| Operating Temp. | 0°C~60°C (32°F~140°F) @humidity 20%~90% | |
| Storage Temp. | -40°C~85°C (-40°F~185°F) @humidity 20%~95% | |
BM-D226 Highlight

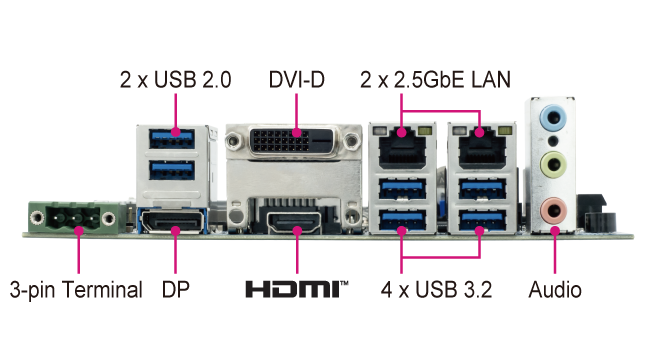

BM-D226 IO
BM-D226 Dimensions
