BM-2503
•2 x Gb LAN, 8 x USB
•1 x VGA, 1 x DP, 1 x LVDS (internal)
•2 x SATA III, supporting RAID 0/1
•1 x PCIe (x16), 1 x M.2 (2242-D2-M)
| System | ||
| CPU Support |
LGA1151 socket for Intel® 7th / 6th Gen. Core™ i7 / i5 / i3 / Pentium® / Celeron® desktop CPU
|
|
| CPU List |
7th Core™: i7-7700T(TE), i5-7500T(TE), i3-7100T(TE) 6th Core™: i7-6700(TE), i5-6500(TE), i3-6100(TE) Pentium®: G4400(TE) Celeron®: G3900(TE) |
|
| Chipset |
Intel® H110/Q170 |
|
| Memory Support |
2 x SO-DIMM sockets, supporting 1866/2133MHz DDR4 up to 32GB |
|
| BIOS | AMI UEFI BIOS | |
| Watchdog |
1~255 seconds watchdog timer selectable
|
|
| Power Supply |
DC In 12V (rear I/O, phoenix 3 pins terminal block); ATX 4 pin power connector |
|
| Power Consumption |
+12V: 10.3A (H110 SKU) +12V: 12.2A (Q170 SKU) |
|
| Dimensions |
170 x 170 mm (6.69" x 6.69") |
|
| Certifications |
FCC / CE |
|
| O.S. Support |
Windows 10 IoT / Windows 8.1 / Windows 8 / Windows 7 (Intel 7th generation CPU is ONLY compatible with Windows 10 IoT) |
|
|
I/O Ports |
||
| SATA Interface |
2 x SATA 3.0 (Only Q170 SKU supports RAID 0/1) |
|
| Serial Ports |
2 ports COM 1: RS-232/422/485 (rear I/O) COM 2: RS-232 (rear I/O) COM 1/2 support 5V/12V/RI jumper selectable |
|
| LAN |
Dual LAN (2 x RJ45 on rear I/O) LAN 1: Intel® PHY 219LM (GbE) LAN 2: Intel® LAN 211AT (GbE) Supports Wake-On-LAN / PXE |
|
| Audio |
Mic In / Line In / Line Out (rear I/O)
|
|
| FAN |
1 x CPU fan, 1 x system fan (internal connector) |
|
| USB |
8 ports 4 x USB 3.0 (rear I/O) 4 x USB 2.0 (rear I/O) |
|
| Expansion Bus |
1 x PCIe (x16) 1 x M.2 (2242-D2-M) |
|
|
Graphics |
||
| VGA |
1 x VGA up to 1920 x 1200 @60Hz (rear I/O) |
|
| DisplayPort |
1 x DP up to 4096 x 2304 @60Hz (rear I/O) |
|
| LVDS |
1 x LVDS, dual channel, resolution range: 800 x 600~1920 x 1200 (internal) |
|
|
Environment |
||
| Operating Temp. |
0°C~60°C (32°F~140°F) @humidity 20%~90%
|
|
| Storage Temp. | -40°C~85°C (-40°F~185°F) @humidity 20%~95% | |

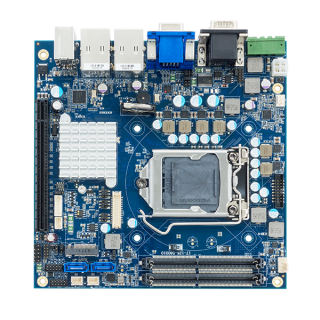

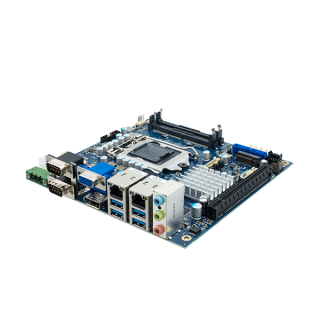

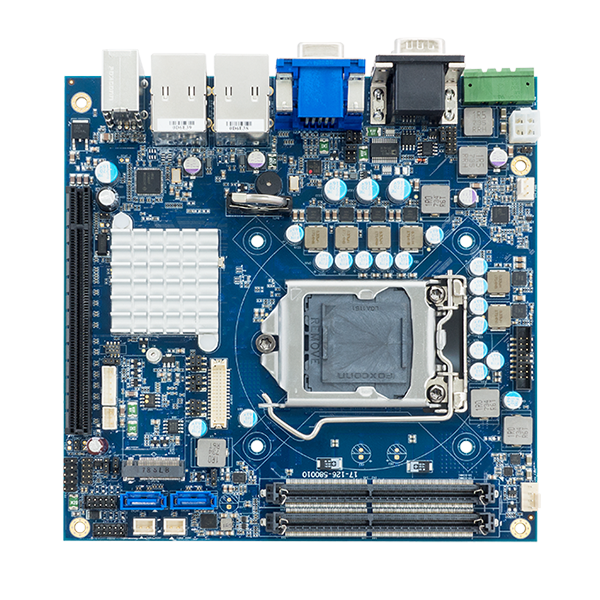

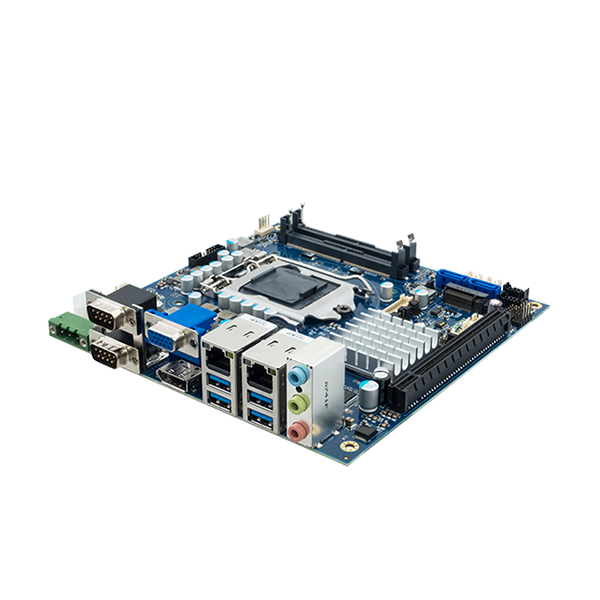

BM-2503 Highlight

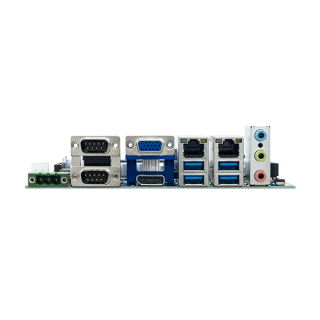

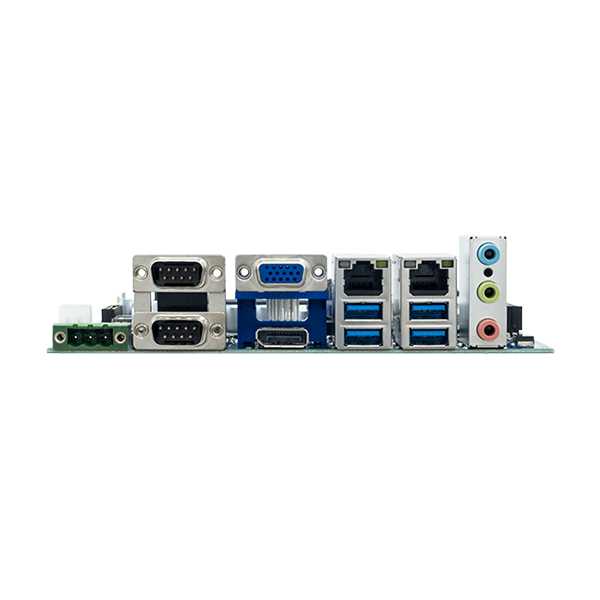

BM-2503 IO
| BM-2503 |
Mini-ITX Intel® 7th / 6th Gen. Core™ i7 / i5 / i3 / Pentium® / Celeron® CPU |
