BM-2502
•6 x COM, 2 x LAN, 9 x USB, 1 x LPT
•2 x DVI, 1 x DP (internal)
•2 x SATA, supporting RAID 0/1
•1 x PCIe (x16), 1 x half-sized mPCIe
| System | ||
| CPU Support |
LGA1151 socket for Intel® 7th / 6th Gen. Core™ i7 / i5 / i3 desktop CPU
|
|
| CPU List |
7th Core™: i7-6700(TE), i5-6500(TE), i3-6100(TE), 6th Core™: i7-7700T(TE), i5-7500T(TE), i3-7100T(TE) Pentium®: G4400(TE) Celeron®: G3900(TE) |
|
| Chipset |
Intel® H110/Q170 |
|
| Memory Support |
2 x SO-DIMM sockets, supporting 1866/2133MHz DDR4 memory up to 32GB |
|
| BIOS | AMI UEFI BIOS | |
| Watchdog |
1~255 seconds watchdog timer selectable
|
|
| Power Supply |
ATX power (24+4 pin) |
|
| Power Consumption |
+5V: 1.26A; +12V: 0.28A; +3.3V: 0.28A +5VSB: 0.08A (CPU: i7 6700 3.4GHz) |
|
| Dimensions |
170 x 170 mm (6.69" x 6.69") |
|
| Certifications |
FCC / CE |
|
| O.S. Support |
Windows 10 64bit / Windows 8.1 64bit / Windows 7 32/64bit
|
|
|
I/O Ports |
||
| SATA Interface |
2 x SATA 3.0 (Only Q170 SKU supports RAID 0/1) |
|
| Serial Ports |
6 ports COM 1: RS-232/422/485 (rear I/O) COM 2: RS-232 (rear I/O) COM 3~6: RS-232 (internal wafer) COM 1/2/4 supports +5V/+12V, selectable by jumper |
|
| Parallel Port |
1 x Parallel Port (SPP/EPP/ECP) (box header) |
|
| LAN |
Dual LAN (2 x RJ45 on rear I/O) LAN 1: Intel® PHY 219LM (GbE) LAN 2: Intel® LAN 210AT (GbE) Supports Wake-On-LAN |
|
| Audio |
Mic In / Line In / Line Out (rear I/O)
|
|
| FAN |
1 x CPU fan, 1 x system fan (internal connector) |
|
| USB |
9 ports 4 x USB 3.0 (rear I/O) 4 x USB 2.0 (rear I/O) 1 x USB 2.0 (internal wafer) |
|
| Expansion Bus |
1 x PCIe (x16) 1 x half-sized mPCIe (w/o USB signal) |
|
|
Graphics |
||
| DVI |
2 x DVI-D (rear I/O) up to 1920 x 1200 @60Hz |
|
| DisplayPort |
1 x DP (internal) up to 4096 x 2304 @60Hz |
|
|
Environment |
||
| Operating Temp. |
0°C~60°C (32°F~140°F) @humidity 20~90%
|
|
| Storage Temp. | -40°C~85°C (-40°F~185°F) @humidity 20~95% | |

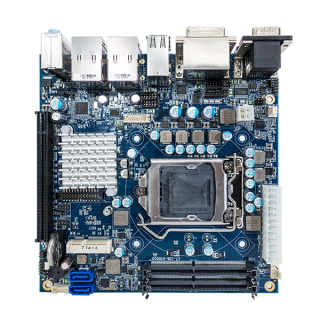

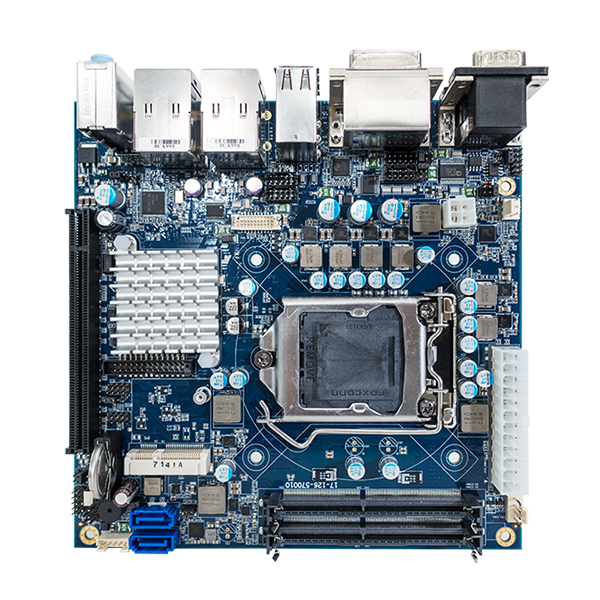

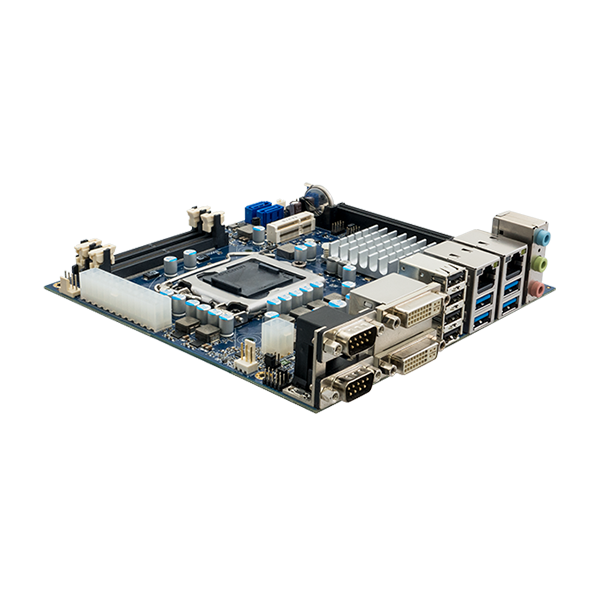

BM-2502 Highlight

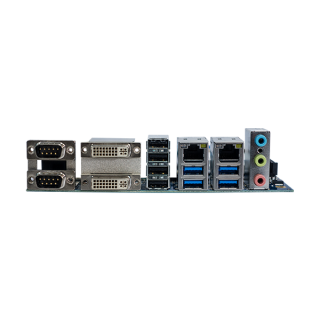

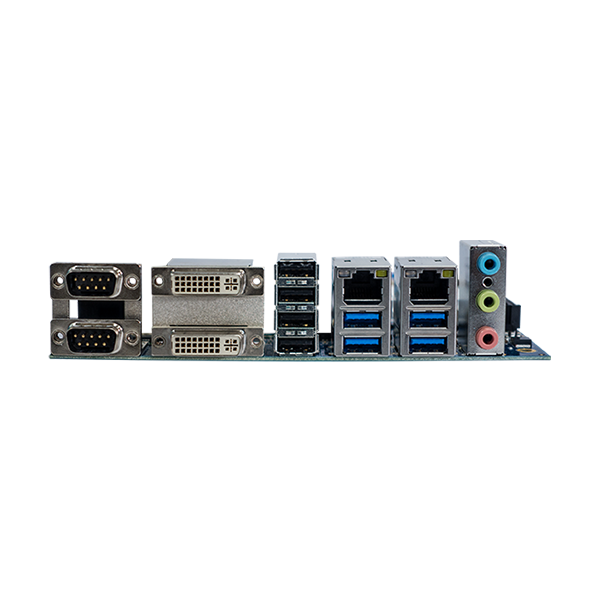

BM-2502 IO
| BM-2502 |
Mini-ITX Intel® 7th / 6th Gen. Core™ i7 / i5 / i3 / Pentium® / Celeron® CPU |
