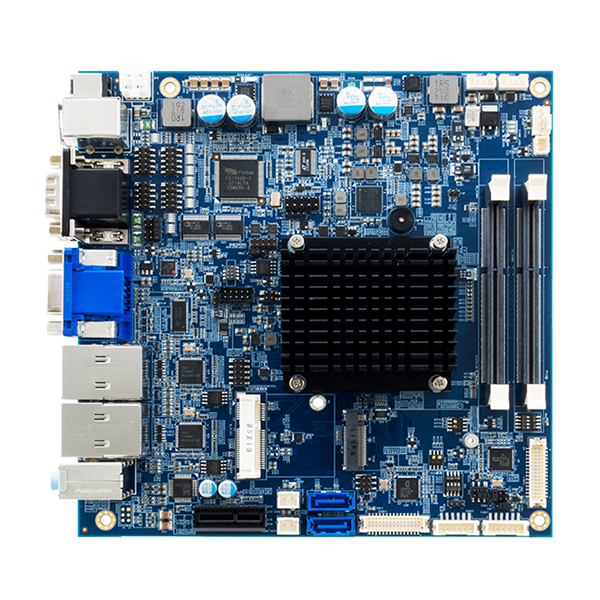

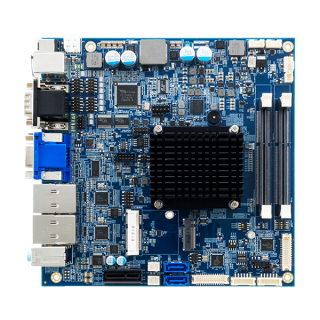

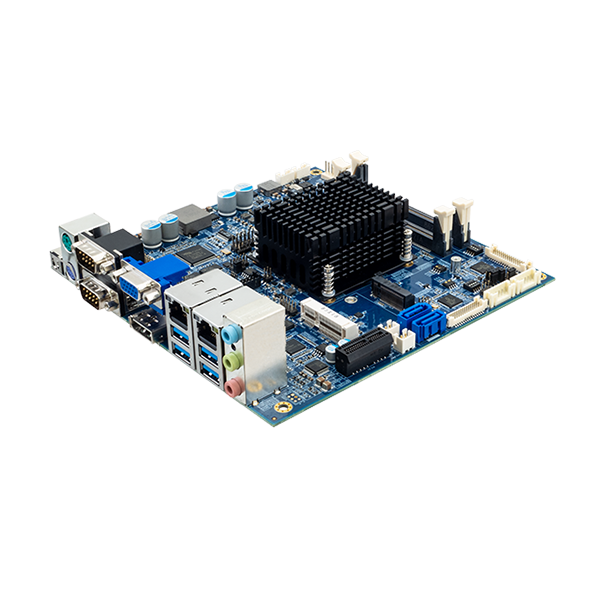

BM-0982
•1 x I²C with API support
•6 x COM, 6 x USB, 8bit DIO
•Supports 3 displays: LVDS + VGA + DP/HDMI® (Combo, up to 4K )
•1 x half-sized mPCIe
•1 x M.2 slot (support 2242 device)
| System | ||
| CPU Support |
Intel® Pentium® N4200: 6w, 4C, 1.1/2.5GHz Intel® Celeron® N3350: 6w, 2C, 1.1/2.4GHz |
|
| Chipset |
Apollolake SoC |
|
| Memory Support |
2 x SO-DIMM socket, supporting 1600/1866MHz DDR3L up to 8G (non-ECC) |
|
| BIOS | AMI BIOS | |
| API/SW/FW |
API/SW: Watchdog / DIO / Backlight Control / I²C / HW monitor
|
|
| Power Supply |
DC In 12V~24V Connector: 1 x DC jack on rear I/O, 1 x internal 4 pin (2 x 2) |
|
| Power Consumption |
TBD
|
|
| Dimensions |
170 x 170 mm (6.69" x 6.69") |
|
| Certifications |
FCC / CE |
|
| O.S. Support |
Windows 10 64bit
|
|
|
I/O Ports |
||
| SATA Interface |
2 x SATA III (6.0Gb/s), 1 x M.2 slot (support 2242 device) |
|
| Serial Ports |
6 x ports COM 1/2: RS-232/422/485 & support RI/5V/12V selectable under BIOS (rear I/O) COM 3~6: RS-232 (pin header) |
|
| Keyboard/Mouse |
2 x ports (rear I/O) |
|
| LAN |
Dual LAN (2 x RJ45 on rear I/O) Supports Wake-On-LAN Controller: 2 x Intel® I210 (GbE) |
|
| Audio |
Codec IC: Realtek ALC888 (high definition codec) 1 x Mic In / 1 x Line In / 1 x Line Out (rear I/O) Option: 1 x Mic In / 1 x Line Out (pin header) |
|
| Digital I/O |
4 in / 4 out (internal wafer) |
|
| FAN |
1 x 4 pin connector for CPU fan (compatible 3 pin system fan) |
|
| USB |
9 ports 4 x USB 3.0 (rear I/O) 4 x USB 2.0 (rear I/O) 1 x USB 2.0 (internal wafer) |
|
| Expansion Bus |
1 x PCIe (x1) 1 x half-sized mPCIe (PCIe signal only) |
|
|
Graphics |
||
| VGA |
1 x VGA (rear I/O), resolution: up to 1920 x 1200 @60Hz |
|
| DisplayPort |
1 x DP / HDMI® combo (rear I/O) - Display Port 1.2: resolution up to 4096 x 2160 @60Hz - HDMI® 1.4b: resolution up to 3840 x 2160 @30Hz (Note: DP and HDMI® only one work at the same time) |
|
| LVDS |
1 x LVDS (internal connector), up to dual channel, 48 bit, resolution up to 1920 x 1200, w/ LCD 3.3V/5V/12V Option: 2nd LVDS, dual channel 48 bit up to 1920 x 1200 (Internal connector) for customized BOM, must remove VGA connector and have another I/O shield |
|
|
Environment |
||
| Operating Temp. |
0°C~60°C (32°F~140°F)
|
|
| Storage Temp. | -40°C~85°C (-40°F~185°F) | |
| Humidity | Operation humidity 20%~90%, storage humidity 20%~95% | |

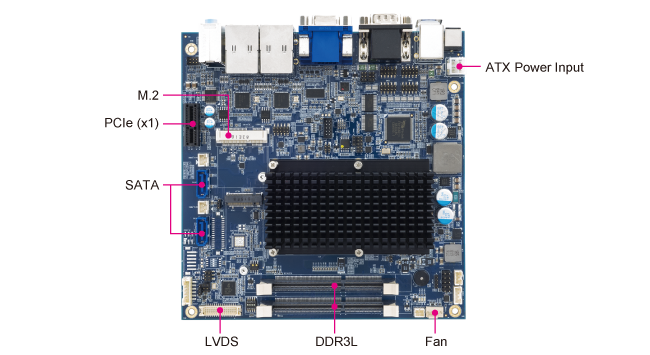

BM-0982 Highlight

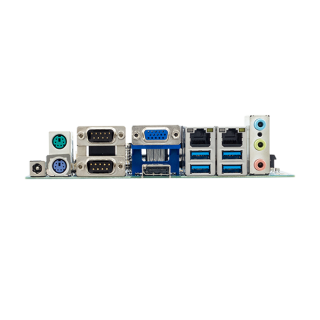

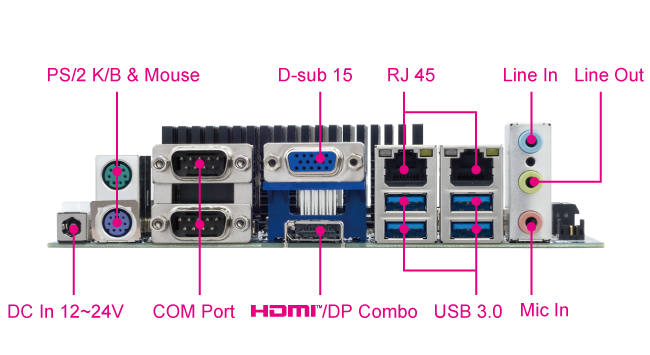

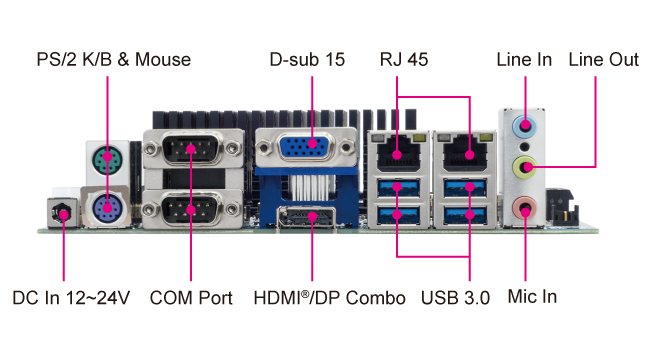

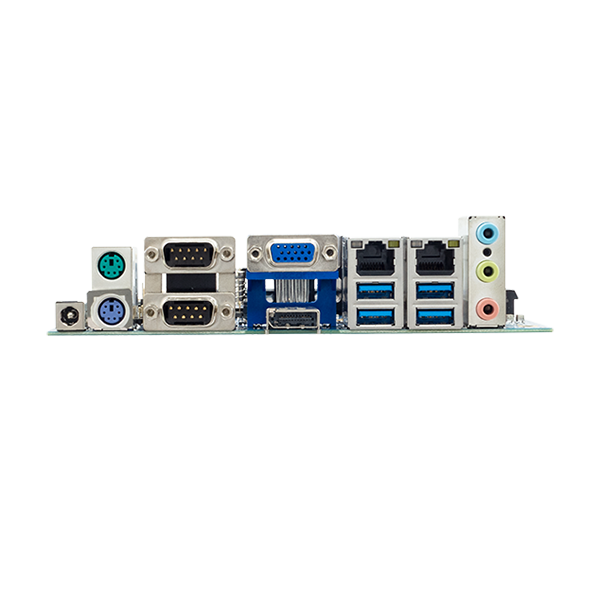

BM-0982 IO
| BM-0982 |
Thin Mini-ITX Intel® Pentium® N4200 / Celeron® N3350 Embedded SoC |
