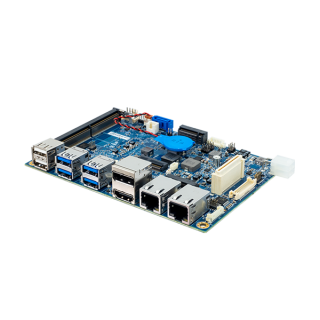

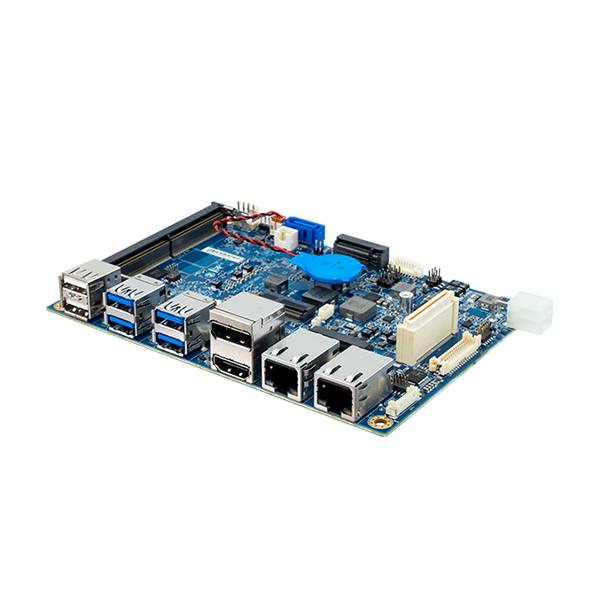

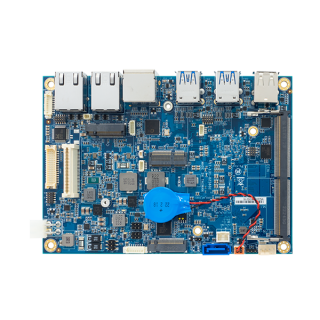

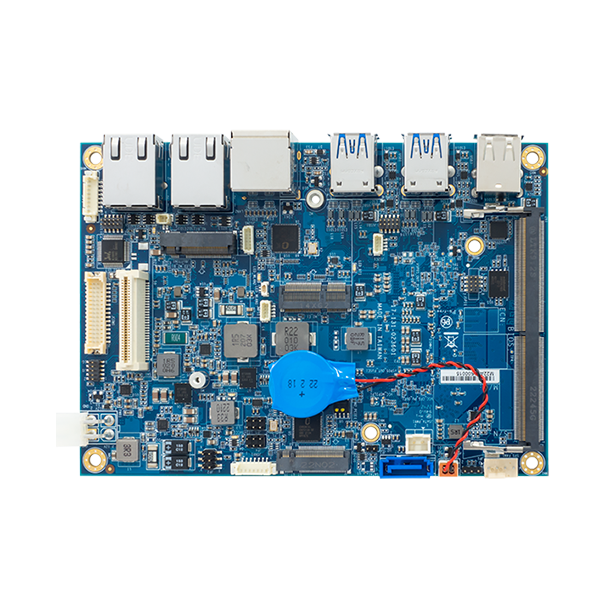

BE-U236
•2 x 2.5GbE LAN, 8 x USB, 2 x RS-232/422/485, 8bit DIO
•1 x DP, 1 x HDMI®, 1 x LVDS / eDP
•1 x M.2 M-Key 2280 (PCIe Gen4 x4)
•1 x M.2 B-Key 3042 (PCIe x1, USB2.0)
•1 x M.2 E-Key 2230 (PCIe x1, USB2.0)
•1 x Protech defined B2B Expansion I/O socket
•Wide Voltage DC Input 12V~24V
| System | ||
| CPU Support |
Intel® CoreTM i7-1265UE, 2P8E, 96EU Intel® CoreTM i5-1245UE, 2P8E, 80EU Intel® CoreTM i3-1215UE, 2P6E, 64EU Intel® Celeron® 7305E, 1P4E, 48EU |
|
| Chipset |
Intel® SoC
|
|
| Memory Support | 1 x SO-DIMM socket, supporting DDR5 up to 32GB (non-ECC) | |
| BIOS | AMI UEFI BIOS | |
| API/SW/FW | Hardware Monitor API/utility, Watchdog API/utility, selectable timer: 1~255 seconds | |
| Power Supply | DC In 12V~24V | |
| Power Consumption | TBD | |
| Dimensions | 145 x 102 mm (5.71" x 4.02") | |
| Certifications | FCC / CE | |
| O.S. Support |
Windows IoT Enterprise 2021 LTSC / Windows 11 IoT Enterprise (GAC) / Ubuntu 22.04 LTS (Kernel 5.15) |
|
|
I/O Ports |
||
| SATA Interface |
1 x SATA III port (6.0Gb/s) |
|
| Serial Ports |
2 ports (wafer) COM1: RS-232/422/485 COM2: RS-232/422/485 selectable under BIOS, default RS-232 |
|
| LAN |
Dual LAN
LAN 1:Intel® I225 supports 2.5GbE LAN LAN 2:Intel®I225 supports 2.5GbE LAN |
|
| Audio |
Line-out / Mic-In (pin header) |
|
| Digital I/O |
4 in / 4 out (pin header) |
|
| USB |
8 ports: 2 x USB 2.0 (internal wafer) 4 x USB 3.2 Gen 2x1 (rear I/O) 2 x USB 2.0 (rear I/O) |
|
| Expansion Bus |
1 x M.2 E-Key 2230 (PCIe x1, USB2.0) 1 x M.2 B-Key 3042 LTE/ 5G (PCIe x1, USB2.0) w/ SIM signal 1 x M.2 M-Key 2280 (PCIe Gen4 x4 NVMe) |
|
| Graphics | ||
| HDMI | 1 x HDMI®, resolution up to 4096 x 2160 @60Hz | |
| DisplayPort | 1 x DP, up to 4096 x 2304 @60Hz | |
| LVDS | 1 x LVDS/eDP, resolution up to 1920 x 1200 | |
| Environment | ||
| Operating Temp. |
0°C~60°C (32°F~140°F): with standard heatsink -20°C~75°C (-4°F~167°F): with qualified thermal solution, T.B.D |
|
| Storage Temp. | -40°C~85°C (-40°F~185°F) | |
| Humidity | Operation & Storage humidity: 20%~95% | |
BE-U236 Highlight

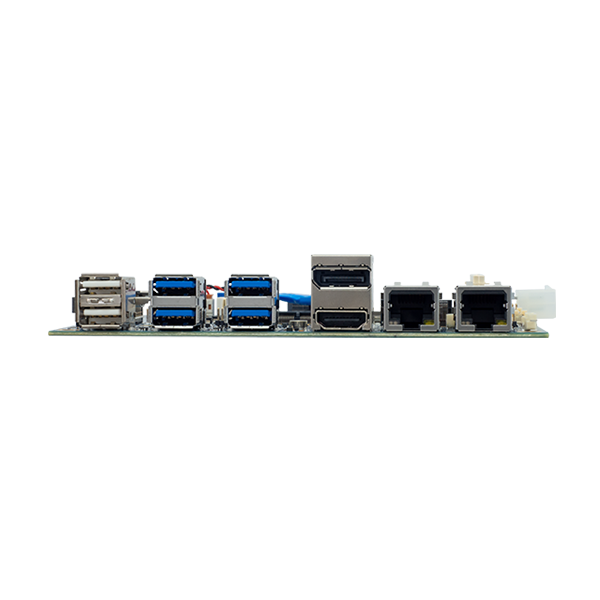

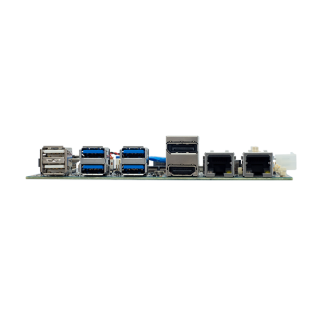

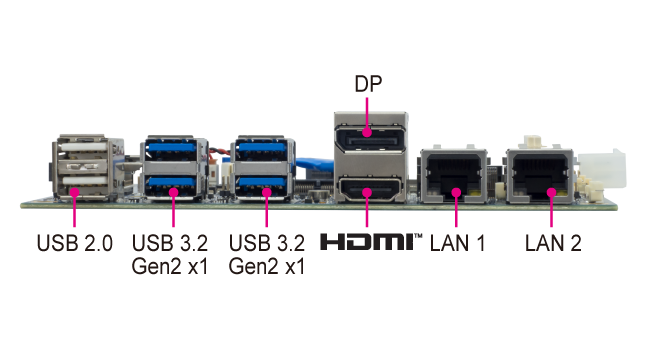

BE-U236 IO
