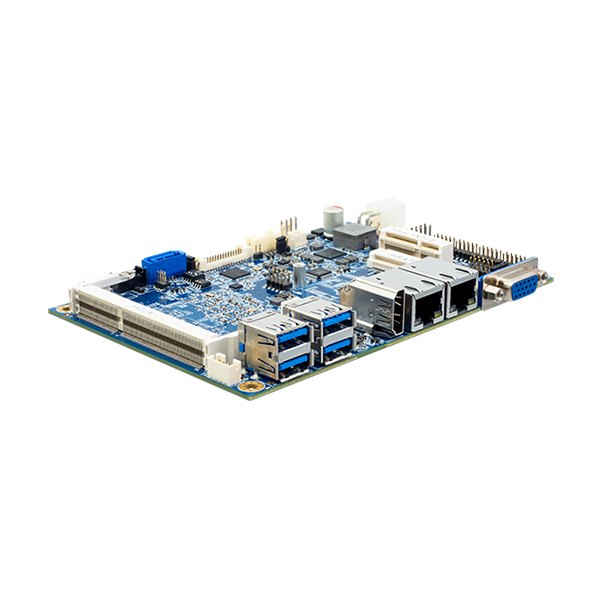

BE-0986
•Wide Range DC input (12V, 19V and 24V)
•1 x I²C, 2 x LAN, 4 x COM, 6 x USB, fTPM
•Programmable 8bit GPIO
•Supports 3 displays: LVDS + VGA + HDMI®1.4b (up to 4K)
•1 x full-sized mSATA (with USB signal)
•1 x full-sized mPCIe
| System | ||
| CPU Support |
Intel® Celeron® J3455: 10w, 4C, 1.5GHz Intel® Celeron® N3350: 6w, 2C, 1.1GHz Intel® Atom® x7-E3950: 12w, 4C, 1.6GHz |
|
| Memory Support |
1 x SO-DIMM socket, supporting 1600/1866MHz DDR3L up to 8G (non-ECC) |
|
| BIOS | AMI UEFI BIOS | |
| API/SW/FW |
API/SW: Watchdog / GPIO / Backlight Control / Fan Control / I2C / HW monitor FW: fTPM, selectable by BIOS |
|
| Power Supply |
Supports both 12V, 19, 24V DC power input Connector: onboard 4pin(2x2) |
|
| Dimensions |
102 x 145 mm (4.02" x 5.71") |
|
| Certifications |
FCC / CE |
|
| O.S. Support |
Windows 10 64bit |
|
|
I/O Ports (Front side) |
||
| SATA Interface |
1 x SATA III port (6.0Gb/sec) |
|
| Serial Ports |
4 ports (pin header) COM 1: RS232 COM 2: RS232/422/485, selected by BIOS COM 3: RS232 w/ RI/5v/12v, selected by jumper COM 4: RS232 w/ RI/5v/12v, selected by jumper |
|
| LAN |
Dual LAN (2 x RJ45 on rear I/O) Supports Wake-On-LAN Controller: 2 x Intel® I210-IT |
|
| Audio |
Mic In / Line In / Line Out (pin header)
Codec IC: Realtek ALC888 (high definition codec) |
|
| GPIO |
8 bit programmable GPIO (with API / utility support) |
|
| USB |
6 ports: 2 x USB 2.0 (internal wafer) 4 x USB 3.0 (rear I/O) Powered by VCC or VSB up to jumper selection |
|
| Expansion Bus |
1 x full-sized mSATA slot (with SATA and USB signal) 1 x full-sized mPCIe slot (with PCIe and USB signal) 1 x I2C onboard connector w/ 5v power (with API / utility support) |
|
| FAN |
1 x 4-pin connector for system fan (with API / utility support) |
|
|
I/O Ports (Rear side) |
||
| DisplayPort |
1 x HDMI®1.4b (rear I/O), resolution: up to 3840x2160@30Hz |
|
| VGA |
1 x VGA (rear I/O), resolution: up to 1920x1200 @60Hz |
|
| LVDS |
1 x LVDS (onboard conn), up to dual channel, 24-bit, Resolution range: 800x600 to 1920x1200, set by slide switch |
|
|
Environment |
||
| Operating Temp.
(Ambient with airflow) |
Celeron® and Pentium®: 0°C~60°C (32°F~140°F) Atom® : -40°C~85°C (-40°F~185°F) |
|
| Storage Temp. | -40°C~85°C (-40°F~185°F) | |
| Humidity |
20%~90% |
|

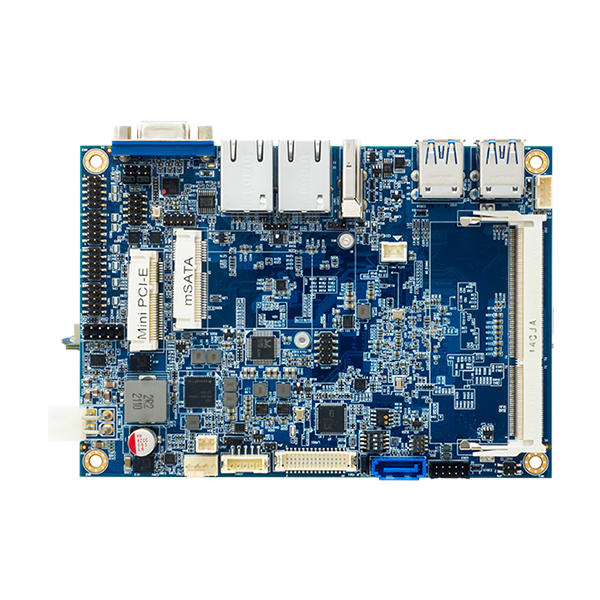

BE-0986 Highlight

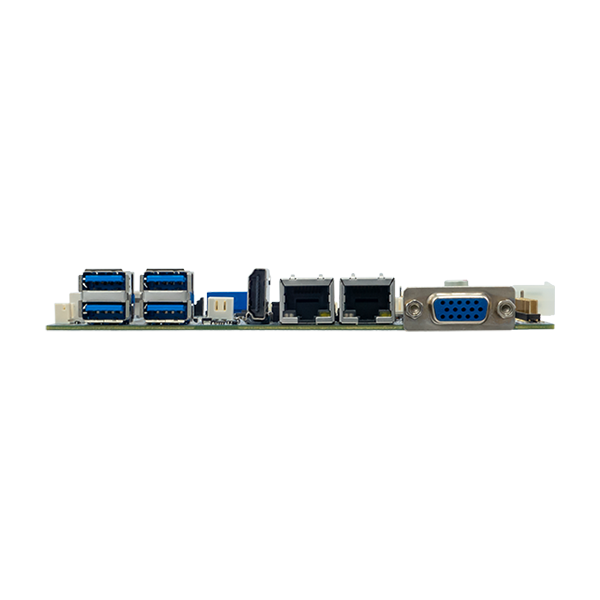

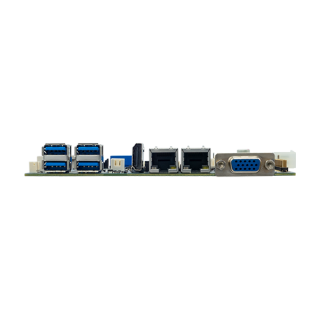

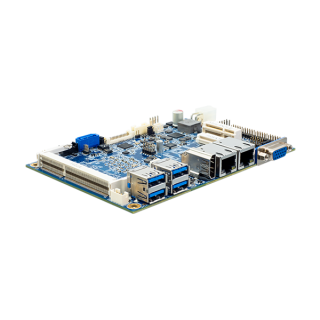

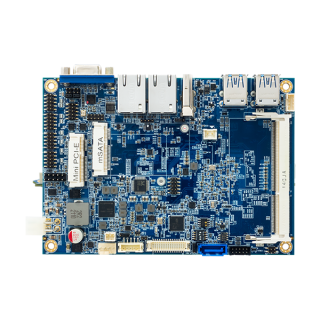

BE-0986 IO
| BE-0986 |
3.5" SBC Intel® Celeron® / Pentium® / Atom® SoC / HDMI® / 12V, 19V and 24V |
