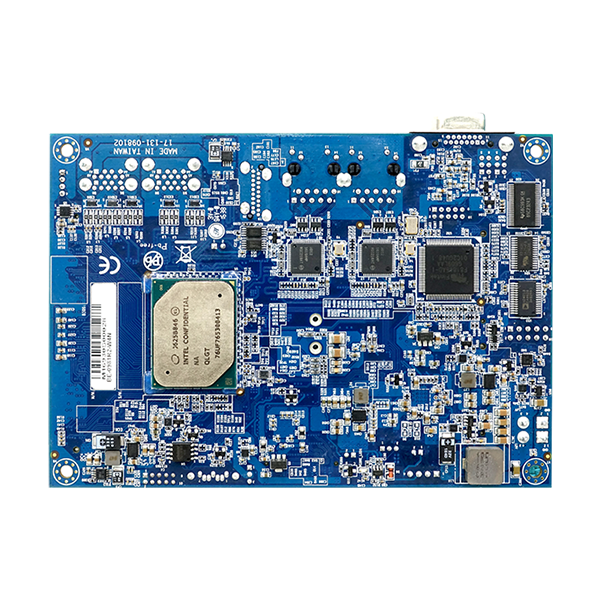

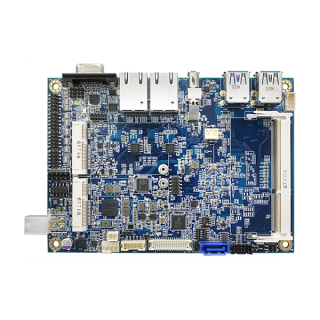

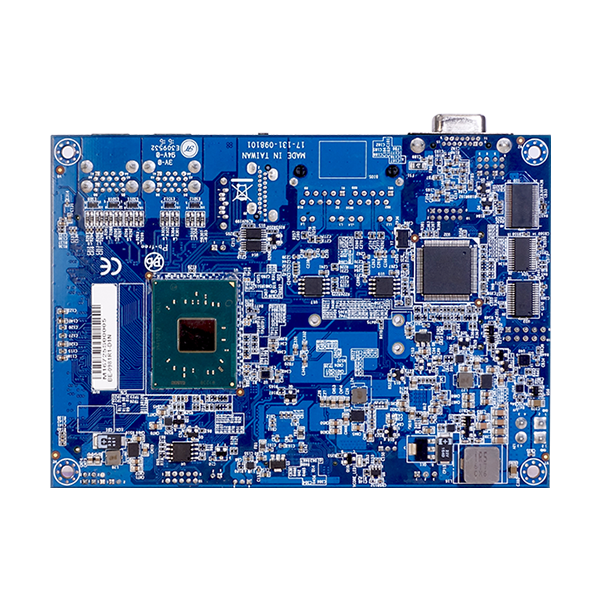

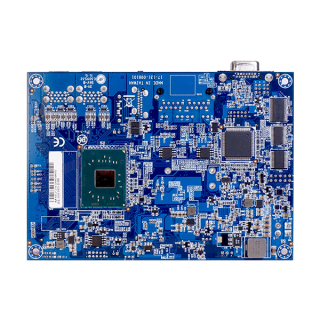

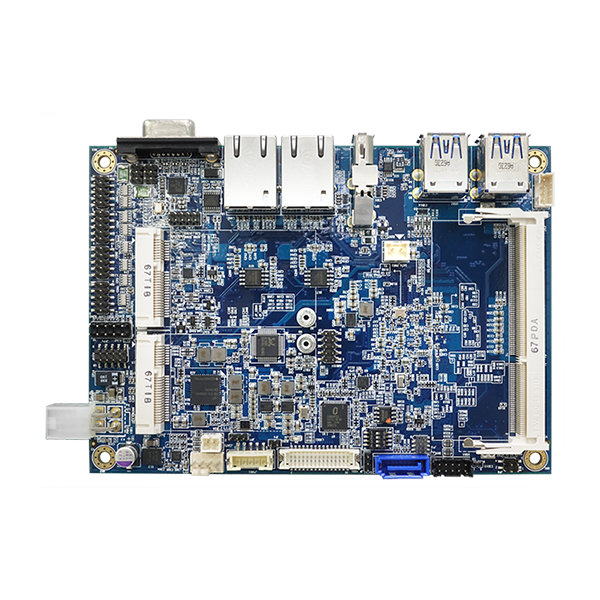

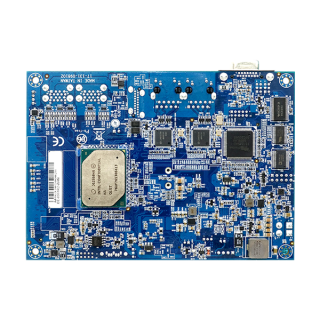

BE-0981
•Intel® SoC
•1 x SO-DIMM sockets (non-ECC)
•4 x COM, 6 x USB, 2 x LAN, I²C
•3 display supporting, LVDS + VGA + HDMI®1.4b (up to 4K)
•1 x full-sized mSATA (with USB signal)
•1 x full-sized mPCIe
| System | ||
| CPU Support |
Intel® Celeron® J3455: 10w, 4C, 1.5GHz Intel® Celeron® N3350: 6w, 2C, 2.4GHz Intel® Pentium® N4200 2.5GHz Intel® Atom® x7-E3950: 12w, 4C, 2.0GHz |
|
| Chipset |
Intel® SoC |
|
| Memory Support |
1 x SO-DIMM socket, supporting 1600/1866MHz DDR3L up to 8G (non-ECC) |
|
| BIOS | AMI UEFI BIOS | |
| API |
Watchdog / DIO / Backlight Control / Fan Control / I²C / HW monitor
|
|
| Power Supply |
DC In 12V only (onboard 4 pin connector)
|
|
| Power Consumption |
+12V; 0.8A (N3350 SKU) |
|
| Dimensions |
102 x 145 mm (4.02" x 5.71") |
|
| Certifications |
FCC / CE |
|
| O.S. Support |
Windows 10 64bit |
|
|
I/O Ports |
||
| SATA Interface |
1 x SATA III port (6.0Gb/sec) |
|
| Serial Ports |
4 ports (internal pin header) COM 1: RS-232 COM 2: RS-232/422/485, selectable under BIOS COM 3: RS-232 w/ RI/5V/12V, selected by jumper COM 4: RS-232 w/ RI/5V/12V, selected by jumper |
|
| LAN |
Dual LAN (2 x RJ45 on rear I/O) Supports Wake-On-LAN Controller: 2 x Intel® I210-IT/AT |
|
| Audio |
Line In / Line Out / Mic-In (onboard pin header)
Codec IC: Realtek ALC888 (high definition codec) |
|
| FAN |
1 x 4-Pin connector for system fan (with API / utility support) |
|
| USB |
6 ports: 2 x USB 2.0 (internal wafer) 4 x USB 3.0 (rear I/O) |
|
| Expansion Bus |
1 x full-sized mSATA slot (with SATA and USB signal) 1 x full-sized mPCIe slot (with PCIe and USB signal) 1 x I²C onboard conn w/ 5V power (with API / utility support) |
|
| Digital I/O |
8 bit programmable DIO (with API / utility support) |
|
|
Graphics |
||
| DisplayPort |
1 x DP 1.2a (rear I/O), resolution: up to 4096 x 2160 @60Hz |
|
| VGA |
1 x VGA (rear I/O) up to 1920 x 1200 @60Hz |
|
| LVDS |
1 x LVDS (onboard conn), Up to dual channel, 24-bit, Resolution range: 800 x 60 to 1920 x 1200, set by slide switch |
|
|
Environment |
||
| Operating Temp. |
0°C~60°C@ humidity 20%~95% (fanless heatsink) for Pentium®/ Celeron® SOC -40°C~85°C@ humidity 20%~95% (fanless heatsink) for Atom® x7/ x5 SOC |
|
| Storage Temp. | -40°C~85°C@ humidity 20%~95% | |
BE-0981 Highlight
BE-0981 IO
| BE-0981 |
3.5" SBC w/ Intel® Atom® x5/ x7/ Celeron®/ Pentium® SoC, DC-in 12V |
