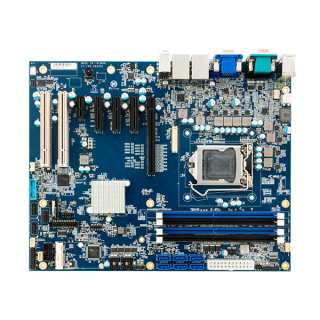

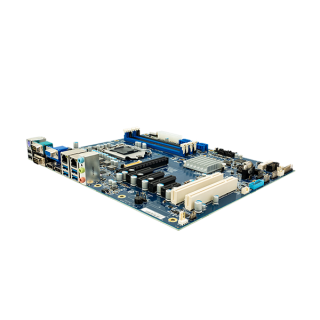

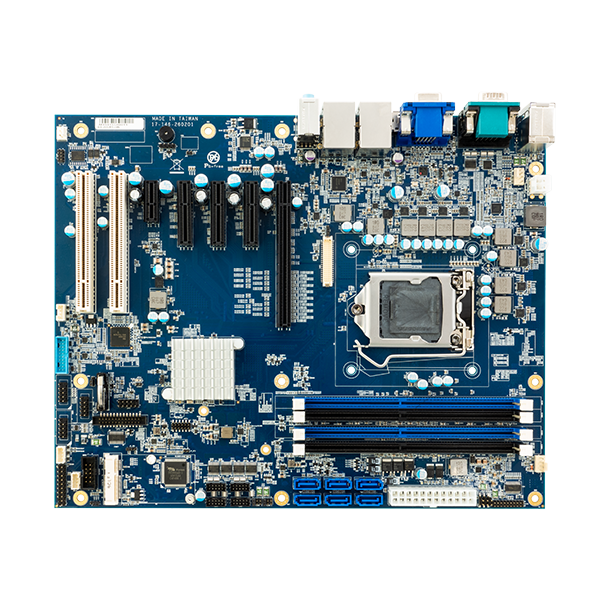

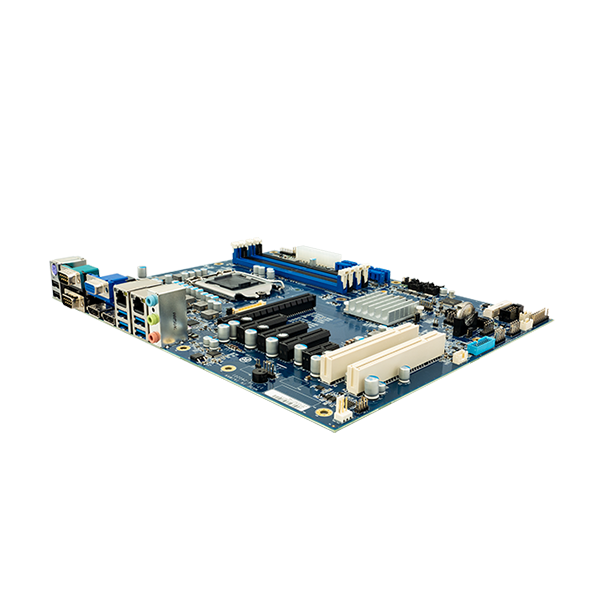

BA-2602
•I6 x COM, 2 x LAN, 12 x USB, 1 x PS/2
•I1 x VGA, 2 x DP, 1 x eDP (internal)
•I6 x SATA, supporting RAID 0/1/5/10
•I1 x Mini PCIe slot
•I1 x PCIe (x16), 3 x PCIe (x4), 1 x PCIe (x1), 2 x PCI
| System | ||
| CPU Support | LGA1151 socket for Intel® 9th / 8th Gen. Core™ i7 / i5 / i3 / Pentium® / Celeron® desktop CPU / Xeon® E-2200 / E-2100 server CPU (≦65W) | |
| CPU List |
Xeon®: E-2278GE(GEL), E-2276GE, E-2176G, E-2124G 9th Gen. Core™: i7-9700E(TE), i5-9500E(TE), i3-9100E(TE) 8th Gen. Core™: i7-8700(T), i5-8500(T), i3-8100(T) Pentium®: G5400, G5400T Celeron®: G4900, G4900T |
|
| Chipset | Intel® C246 (support Xeon® / Core™ / Pentium® / Celeron® CPU)
Intel® Q370/H310 (support Core™ / Pentium® / Celeron® CPU)
|
|
| Memory Support |
C246/Q370: 4 x DIMM sockets, support 2400/2666MHz DDR4 up to 64GB H310: 2 x DIMM sockets, support 2400/2666MHz DDR4 up to 32GB Support ECC (C246)/non-ECC (C246/Q370/H310) |
|
| BIOS | AMI UEFI BIOS | |
| Watchdog | 1~255 seconds watchdog timer selectable | |
| Power Supply | Supports ATX power (24+4 pin) | |
| Power Consumption | +12V: 1.7A; -12V: 0.1A; +3.3V: 0.33A; +5V: 1.12A; 5Vsb: 0.1A | |
| Dimensions | 305 x 244 mm (12" x 9.6") | |
| Certifications | CE / FCC | |
| O.S. Support |
Windows 10 IoT Enterprise, Linux |
|
|
I/O Ports |
||
| SATA Interface |
C246/Q370: 6 x SATA 3.0, support RAID 0/1/5/10/01 H310: 4 x SATA 3.0, without RAID
|
|
| Expansion Bus |
C246/Q370: 1 x PCIe (x16), 3 x PCIe (x4), 1 x PCIe (x1), 2 x PCI, 1 x Mini PCIe H310: 1 x PCIe (x16), 1 x PCIe (x4), 2 x PCI (H310) |
|
| M.2 Slot |
1 x M.2 slot support NVMe (PCIex4), 2242/2260, colay with 4th PCIe slot |
|
| LPC |
1 x LPC (pin header) |
|
| Serial Ports |
C246/Q370: 6 x COM ports COM 1/COM 2 in rear I/O, COM 2 for RS232/422/485, COM 3~6 internal wafer, COM 3/COM 4 for +5V and +12V H310: 4 COM ports COM 1/COM 2 in rear I/O, COM 2 for RS232/422/485 COM 3 & 4 internal wafer and +5V and +12V selected by jumper |
|
| Keyboard/Mouse |
1 x PS/2 Combo connector for keyboard & mouse (rear I/O)
|
|
| FAN |
1 x CPU fan, 2 x system fans (internal connector) |
|
| LAN |
Dual LAN (2 x RJ45 on rear I/O) LAN 1: Intel® PHY 219LM (GbE) LAN 2: Intel® LAN 211AT (GbE) Supports Wake-On-LAN & PXE |
|
| Audio |
Mic In / Line In / Line Out (rear I/O) Internal 2 x 5 wafer, Pitch 2.0 (connected to front panel of chassis)
|
|
| Digital I/O |
8 in / 8 out (pin header) |
|
| USB |
C246/Q370: 12 ports USB 1_2: 2 x external USB 3.1 stacked with LAN (rear I/O) USB 3_4: 2 x external USB 3.0 stacked with LAN (rear I/O) USB 5_6: 2 x internal USB 2.0 (pin header) USB 7_8: 2 x internal USB 3.0 (box header) USB 9_10: 2 x external USB 2.0 stacked with PS/2 Combo connector USB 11_12: 2 x internal USB 2.0 (pin header)
H310: 10 ports USB 1_2: 2 x external USB 3.0 stacked with LAN (rear I/O) USB 3_4: 2 x external USB 2.0 stacked with LAN (rear I/O) USB 5_6: 2 x internal USB 2.0 (pin header) USB 7_8: 2 x internal USB 3.0 (box header) USB 9_10: 2 x external USB 2.0 stacked with PS/2 Combo connector |
|
| Graphics | ||
| Flexible Display |
C246/Q370: 1 x VGA, 2 x DP, 1 x eDP, support triple independent display; H310: 1 x VGA, 2 x DP, support dual independent display |
|
| VGA | 1 x VGA (rear I/O) up to 1920 x 1200 @60Hz (default) | |
| DisplayPort | 2 x DP (rear I/O) up to 4096 x 2304 @60Hz (default) | |
| eDP | 1 x eDP (internal) up to 4096 x 2304 @60Hz (default) (Only for C246/Q370) | |
| Environment | ||
| Operating Temp. | 0°C~60°C (32°F~140°F) @humidity 20%~90% | |
| Storage Temp. | -40°C~85°C (-40°F~185°F) @humidity 20%~95% | |

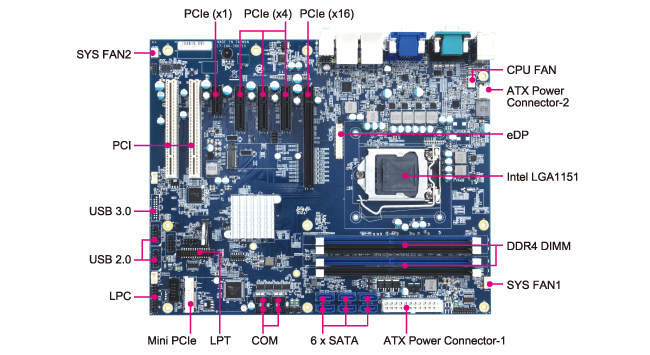

BA-2602 Highlight

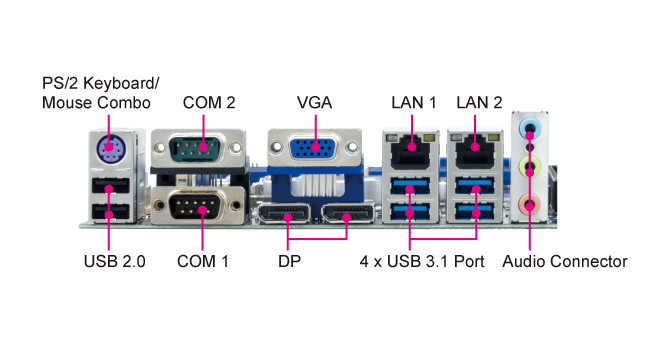

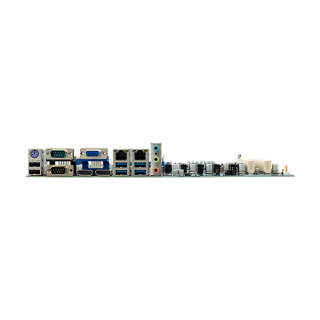

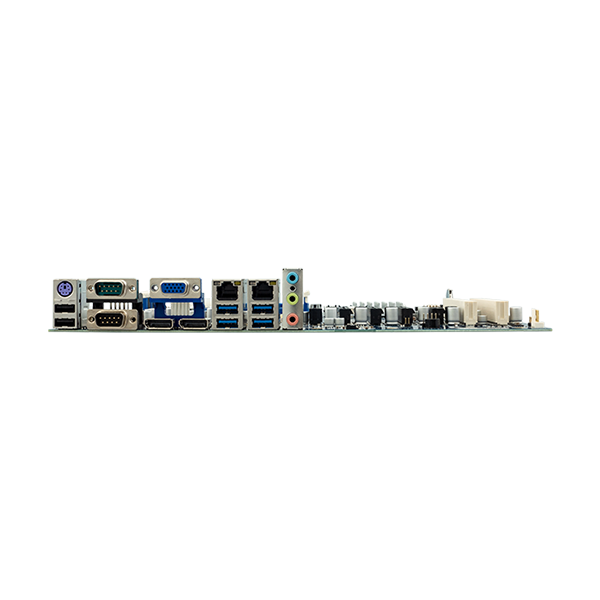

BA-2602 IO
| BA-2602 | ATX Intel® 9th / 8th Gen. Core™ i7 / i5 / i3 / Pentium® / Celeron® / Xeon® E-2200 / E-2100 CPU (≦65W) |
